Delta 3092 7.624.530

• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1975–1977

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 111999

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

• Picture

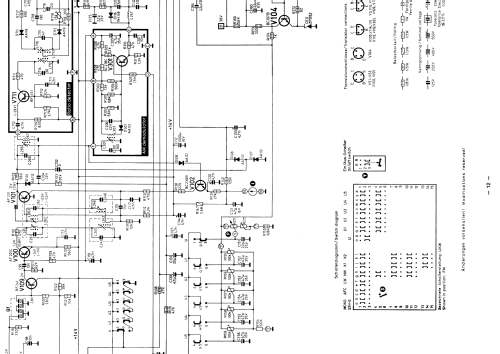

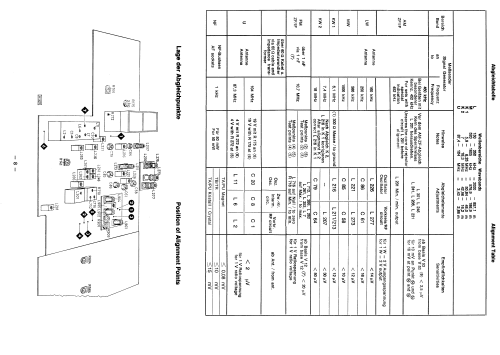

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 47

• Semiconductors
• BF246 BF451 BF241 AF201 BC107 BC172 BC237 BC238 BC239 BC251 BC301 BC308 BC413 BD130 BD167 BSS17 TBA490 BB103 AA112 AA119 1N4148 SE30 ZPD8,2 ZY13 B80C3200/2200

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 9 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220-240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 50 W (undistorted)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Delta 3092 7.624.530 - Blaupunkt Ideal, Berlin,

• Shape
• Book-shelf unit.

• Notes
• ICs: 1.
  HiFi-Steuergerät. Stereo-NF-Verstärker mit 2 Endstufen je 25 W (Sinus).

• Source of data
• Handbuch VDRG 1976/1977

• Mentioned in
• Handbuch VDRG 1975/1976

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Josef Pilz. See "Data change" for further contributors.
