Delta 6001 7.623.500
Blaupunkt (Ideal), Berlin, später Hildesheim
- Country
- Germany
- Manufacturer / Brand
- Blaupunkt (Ideal), Berlin, später Hildesheim
- Year
- 1973–1975
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 29042
-
- alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
- Brand: Rotstern

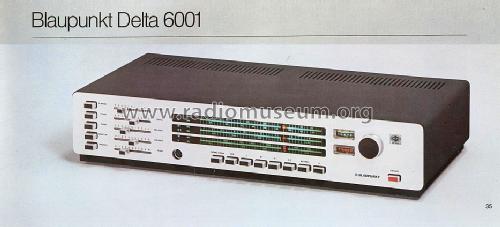

Blaupunkt Sales Brochure
Blaupunkt Sales Brochure
Blaupunkt Sales Brochure

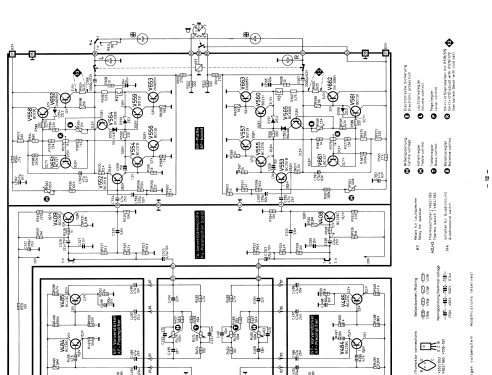

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 59
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Tuned circuits
- 7 AM circuit(s) 10 FM circuit(s)
- Wave bands
- Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 220 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Wooden case
- from Radiomuseum.org
- Model: Delta 6001 7.623.500 - Blaupunkt Ideal, Berlin,
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 614 x 128 x 290 mm / 24.2 x 5 x 11.4 inch
- Notes
- 1 IC. Vollstereo, NF-Verstärker mit zwei Endstufen je 40 W (Sinus). Bei KW1 = 8 Kreise.
- Net weight (2.2 lb = 1 kg)
- 10 kg / 22 lb 0.4 oz (22.026 lb)
- External source of data
- Erb
- Source of data
- Katalog RFP 1973
