Derby H 7.659.650 ab 425001

• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1969/1970

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 882

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

• Picture

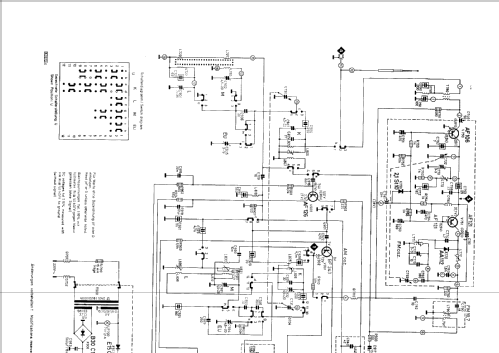

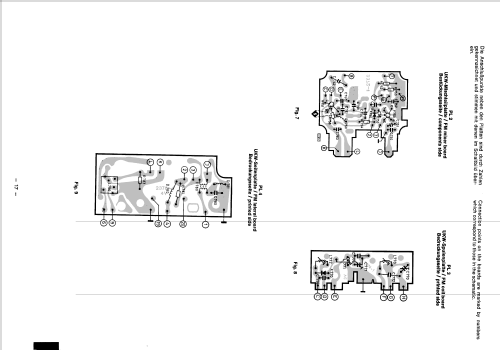

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 11

• Semiconductors
• AF106 AF121 AF126 BF343 AF126 BF343 BC108 AC151 AC153 AC176 AC176 AA112 2,1-St10 SFD037 E15C100 B30C150

• Main principle
• Superheterodyne (common); ZF/IF 460 or 452/10700 kHz

• Tuned circuits
• 7 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 220 / 6 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Power out
• 2 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Derby H 7.659.650 [ab 425001] - Blaupunkt Ideal, Berlin,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 281 x 187 x 79 mm / 11.1 x 7.4 x 3.1 inch

• Notes

• Dioden nur einmal je Type gelistet.

  Der Blaupunkt-Produktkatalog 1969 gibt irrtümlich 10 Transistoren an.

• Net weight (2.2 lb = 1 kg)
• 2.9 kg / 6 lb 6.2 oz (6.388 lb)

• Source of data
• Handbuch VDRG 1969/1970 / Radiokatalog Band 1, Ernst Erb

• Mentioned in
• - - Manufacturers Literature (Produkt-Katalog '69)

• Literature/Schematics (1)
• -- Original-techn. papers. (Service-Manual, KDB 570.04.004)

• Other Models

• Here you find 3589 models, 3277 with images and 2329 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Blaupunkt (Ideal), Berlin, später Hildesheim
