Digita 24 7.622.210 < Nr. 14000
Blaupunkt (Ideal), Berlin, später Hildesheim
- Country
- Germany
- Manufacturer / Brand
- Blaupunkt (Ideal), Berlin, später Hildesheim
- Year
- 1973/1974
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 28961
-
- alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
- Brand: Rotstern
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 10
- Semiconductors
- 2SC829 2SC829 2SC829 2SC829 2SC829 2SC829 2SB171 2SB175 2SB176 2SB176 OA90 KB265 Tr.Gl.=Metal-rectif.
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Tuned circuits
- 4 AM circuit(s) 7 FM circuit(s)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9.4 cm = 3.7 inch
- Power out
- 0.3 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

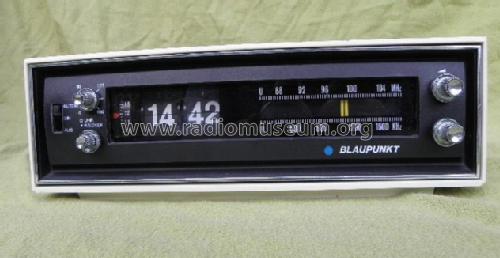

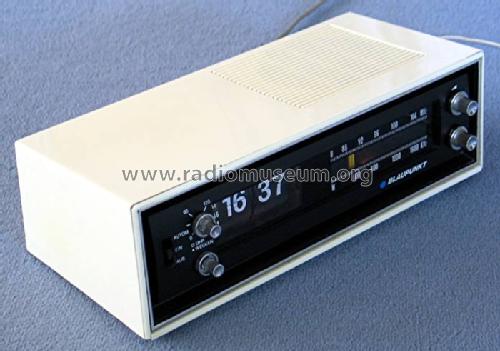

- Model: Digita 24 7.622.210 [< Nr. 14000] - Blaupunkt Ideal, Berlin,
- Shape

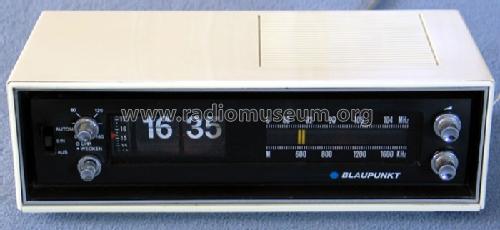

- Tablemodel with Clock ((Alarm-) Clock Radio).
- Dimensions (WHD)
- 260 x 84 x 128 mm / 10.2 x 3.3 x 5 inch
- Notes
-

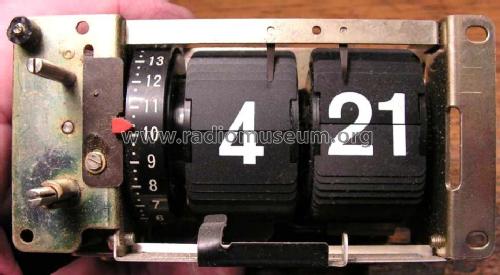

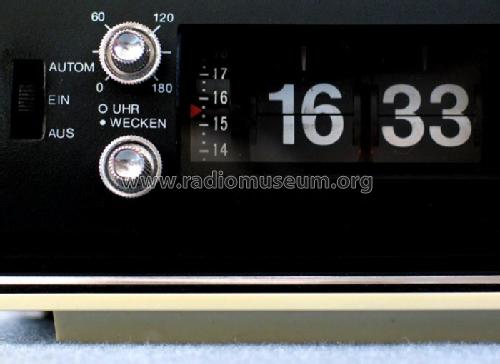

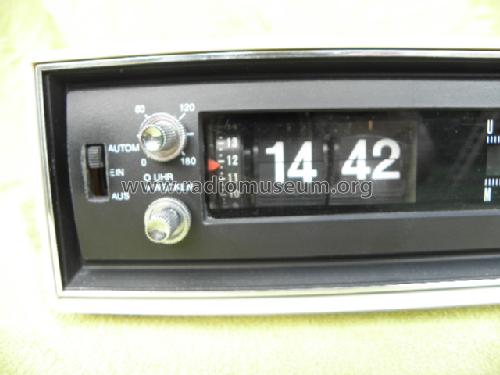

Uhrenradio mit Klappzahlen, Synchronmotor. Gehäuse perlweiß, Ohrhöreranschluss.
Geräte mit besonderer Kennzeichnung AM-ZF 452 kHz, UKW 87,5···104 MHz.Dioden teilweise mehrfach vorhanden.
- Net weight (2.2 lb = 1 kg)
- 1.4 kg / 3 lb 1.3 oz (3.084 lb)
- Price in first year of sale
- 148.00 DM
- External source of data
- Erb
- Source of data
- Katalog RFP 1973
- Mentioned in
- -- Original-techn. papers.
