Digita 503S 7.628.800

Blaupunkt (Ideal), Berlin, später Hildesheim

Data
Forum
Pictures
Collections

  • Year
  • 1978/1979
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 146699
    • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
    • Brand: Rotstern

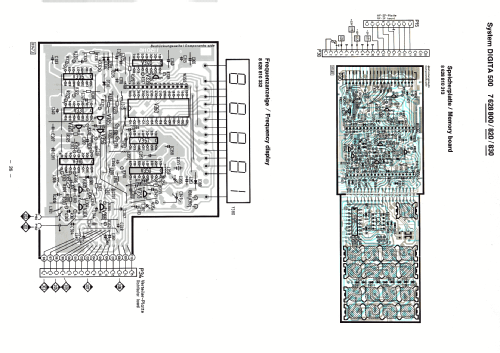

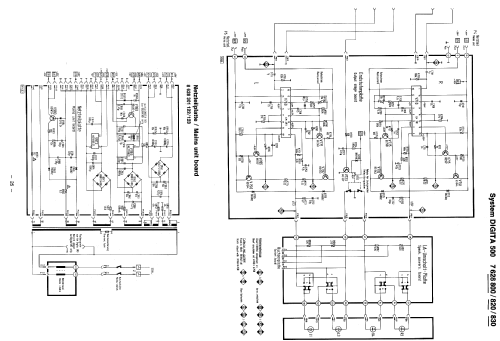

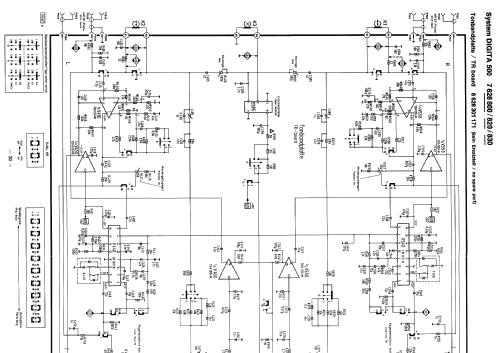

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Details
  • Other Combination - see Notes
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 60 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Digita 503S 7.628.800 - Blaupunkt Ideal, Berlin,
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 785 x 160 x 400 mm / 30.9 x 6.3 x 15.7 inch
  • Notes

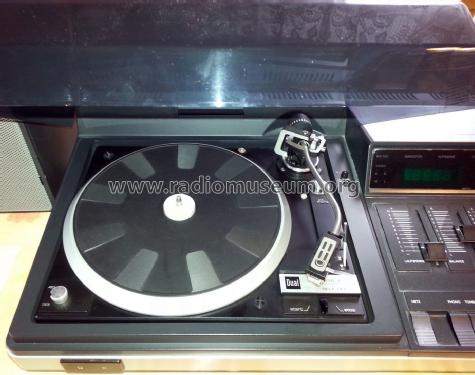

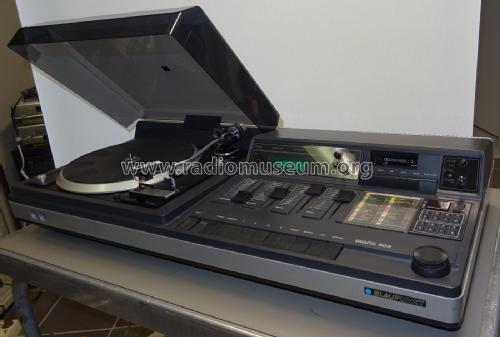

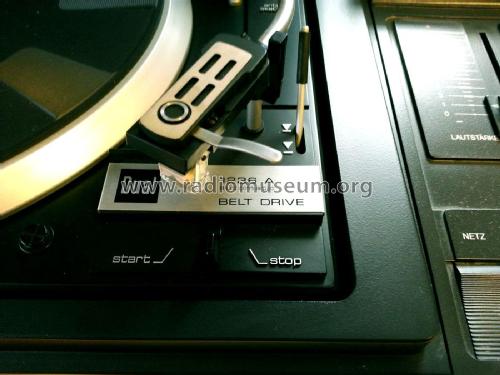

  • Kompaktanlage mit Cassettenrecoder und Dual 1236A Plattenspieler mit Shure M75D.

    Die Modelltype 7.628.800 wurde auch für das Modell Rüdesheim 7.628.800 aus 1968 verwendet.

  • Mentioned in
  • -- Original-techn. papers.
  • Literature/Schematics (1)

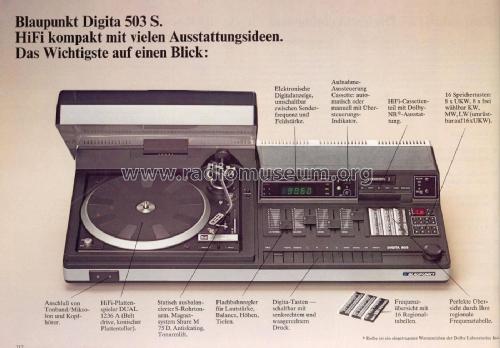

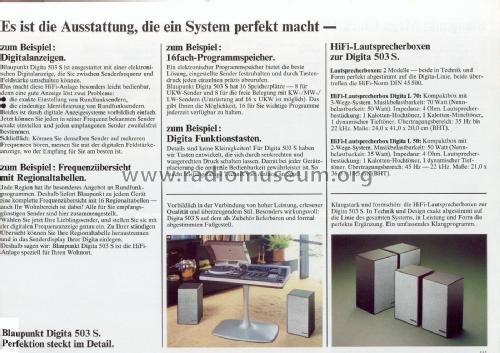

  • -- Original prospect or advert (Ideal-Programm 1978/79)
  • Author
  • Model page created by Richard Winter. See "Data change" for further contributors.
