• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1992

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 153722

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org

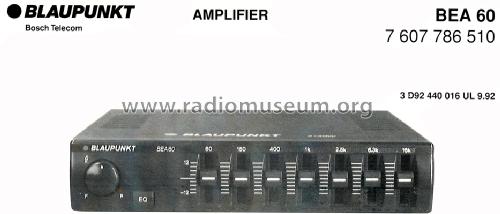

• Model: Equalizer BEA 60 7.607.786.510 - Blaupunkt Ideal, Berlin,

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 180 x 35 x 160 mm / 7.1 x 1.4 x 6.3 inch

• Notes
• ICs: 2× LA3607, 2× TA8225H
  Equalizer BEA60 (7.607.786.510).
  7-Band-Equalizer mit Verstärker von 60 Hz bis 16 kHz regelbar, vier Lautsprecherausgänge, Ausgangsleistung: 2× 30 W, Input Hi über DIN-Buchse oder Low-Eingänge; Gain-Adj.

• Net weight (2.2 lb = 1 kg)
• 1.1 kg / 2 lb 6.8 oz (2.423 lb)

• Author
• Model page created by Karlheinz Fischer. See "Data change" for further contributors.
