• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1985 ??

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 146416

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

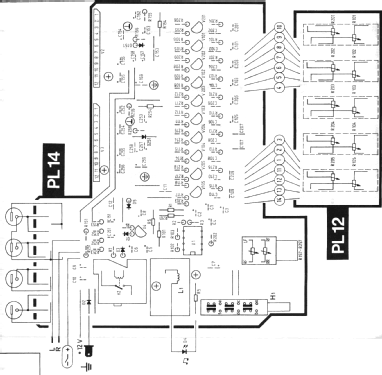

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 11

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org

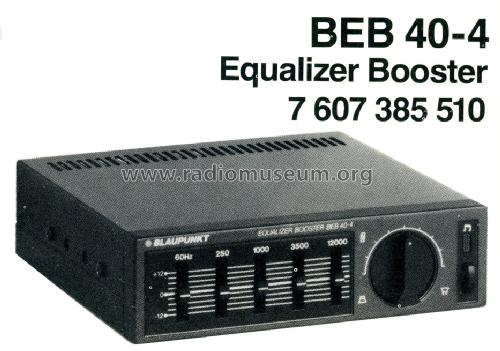

• Model: Equalizer Booster BEB 40-4 7.607.385.510 [ab Nr. 1 500 001] - Blaupunkt Ideal, Berlin,

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 140 x 38 x 140 mm / 5.5 x 1.5 x 5.5 inch

• Notes
• ICs: 3
  Nennleistung: 2× 15 W (Sinus) an 4 Ohm; Frequenzgang: 20-30000 Hz.

• Net weight (2.2 lb = 1 kg)
• 1 kg / 2 lb 3.2 oz (2.203 lb)

• Mentioned in
• Original Blaupunkt Service Unterlagen

• Author
• Model page created by Josef Pilz. See "Data change" for further contributors.
