• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1980 ??

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 146417

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 5

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org

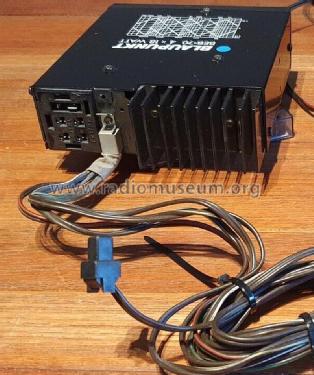

• Model: Equalizer Booster BEB 70 7.607.381.010 - Blaupunkt Ideal, Berlin,

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 147 x 46 x 167 mm / 5.8 x 1.8 x 6.6 inch

• Notes
• ICs :4
  Equalizer Booster BEB70; Nennleistung: 4× 14 W (Sinus); Frequenzgang: 30-30000 Hz.

• Mentioned in
• Original Blaupunkt Service Unterlagen

• Author
• Model page created by Josef Pilz. See "Data change" for further contributors.
