• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1953/1954

• Category
• Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)

• Radiomuseum.org ID
• 105142

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

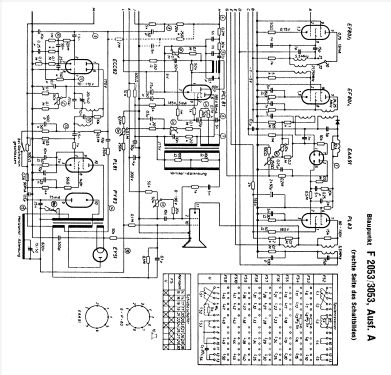

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 18

• Valves / Tubes
• PCC84 ECC81 EF80 EF80 EF80 EF80 EF80 EAA91 PL83 EF80 PABC80 PL82 ECL80 PCL81 ECC82 PL81 PY83 EY51 MW43-61 or Bmv42-2

• Number of Transistors

• Semiconductors
• RL103 EC220/80 EC220/80 EC220/80 EC220/80

• Main principle
• Superhet with RF-stage

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• AC/DC-set / 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 4 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: F2053 [Ausfg. A] - Blaupunkt Ideal, Berlin,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 640 x 510 x 520 mm / 25.2 x 20.1 x 20.5 inch

• Notes

• Wellenbereiche Band I & III und UKW, durchstimmbar 86 - 101 MHz.

• Net weight (2.2 lb = 1 kg)
• 37 kg / 81 lb 8 oz (81.498 lb)

• Price in first year of sale
• 1,398.00 DM

• Source of data
• HdB d.Rdf-& Ferns-GrH 1953/54

• Mentioned in
• -- Original-techn. papers.

• Literature/Schematics (1)
• Lange, Schaltungen der Funkindustrie

• Author
• Model page created by Walter Wiesmüller † May 2012. See "Data change" for further contributors.
