• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1951/1952

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 814

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECH42 EF80 EBF15 EAA11 EM11 EL11 AZ11

• Main principle
• Superheterodyne (common); ZF/IF 473/10700 kHz; 2 AF stage(s); Reflex

• Tuned circuits
• 6 AM circuit(s)     8 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 220-240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 21 cm = 8.3 inch

• Power out
• 4 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: F51W - Blaupunkt Ideal, Berlin,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 610 x 375 x 270 mm / 24 x 14.8 x 10.6 inch

• Notes
• EF80 arbeitet als UKW HF-, ZF- und NF-Stufe (Reflexschaltung)

• Net weight (2.2 lb = 1 kg)
• 14.3 kg / 31 lb 8 oz (31.498 lb)

• Price in first year of sale
• 448.00 DM

• Source of data

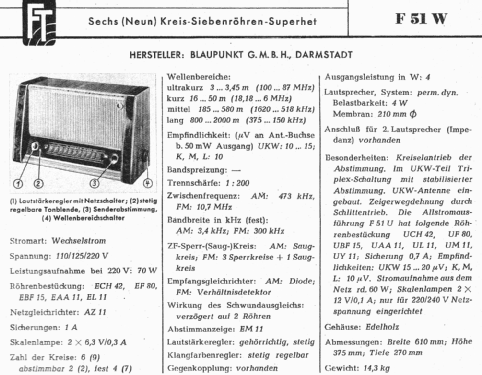

• Kat.d.Rundf.GrossH.1951/52 / Radiokatalog Band 1, Ernst Erb
