• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1951/1952

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 25094

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECH42 EF80 EBF15 EAA11 EM11 EL11 AZ11

• Main principle
• Superheterodyne (common); ZF/IF 473/10,7 kHz

• Tuned circuits
• 5 AM circuit(s)     4 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110-220 Volt

• Loudspeaker
• -Loudspeaker incorporated, but system not known.

• from Radiomuseum.org

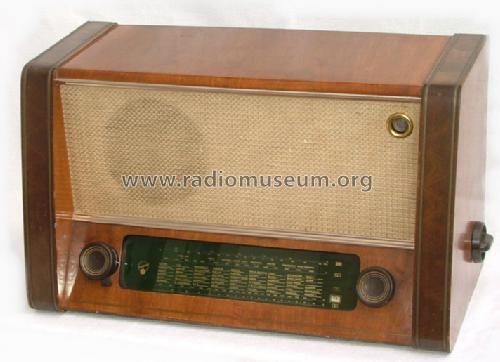

• Model: F51WH - Blaupunkt Ideal, Berlin,

• Notes
• Ch = F520WH = F51W = 511WP = F510WH = F510WP

• External source of data
• Wiesmüller

• Source of data
• Lange, Schaltungen der Funkindustrie
