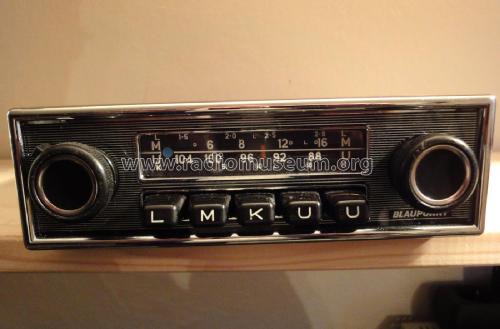

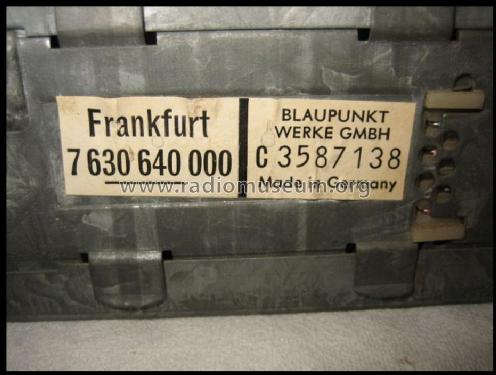

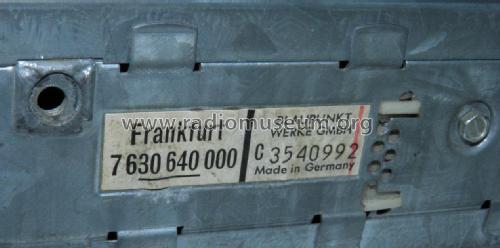

Frankfurt 7.630.640 ab 3272001
Blaupunkt (Ideal), Berlin, später Hildesheim
- Country
- Germany
- Manufacturer / Brand
- Blaupunkt (Ideal), Berlin, später Hildesheim
- Year
- 1970/1971
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 111372
-
- alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
- Brand: Rotstern

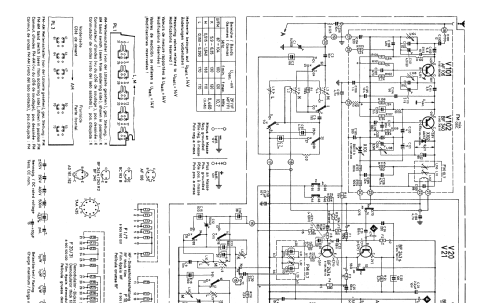

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 10
- Semiconductors
- AF106 BF340 BF243 BF243 BF243 BF243 BF243 BC183 AD161 AD162 TAA435 BA111 AA112 AA119 ZF9,1 BA176
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Tuned circuits
- 8 AM circuit(s) 13 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 4 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: Frankfurt 7.630.640 ab 3272001 - Blaupunkt Ideal, Berlin,
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 178 x 50 x 147 mm / 7 x 2 x 5.8 inch
- Notes
-
Das Autoradio Blaupunkt Frankfurt 7.630.640 ist bestückt mit 10 Transistoren, 1 IC TAA435 (NF-Vorstufe) und 10 Dioden. 5 Stationstasten zur Festsender-Speicherung (1x LW, 1x MW, 1x KW, 2x UKW).

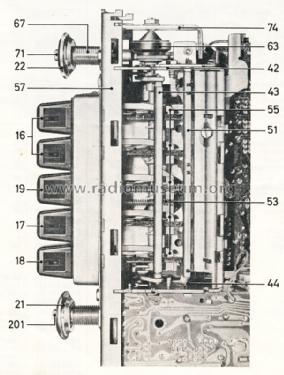

Änderungen im Vergleich zum Vorjahr (Frankfurt 7.639.600):
- Antennentrimmer C1 jetzt von vorne einstellbar
- Skalenlampe jetzt 7V 0,1A
- Net weight (2.2 lb = 1 kg)
- 1.8 kg / 3 lb 15.4 oz (3.965 lb)
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Richard Winter. See "Data change" for further contributors.
- Other Models
-
Here you find 3542 models, 3228 with images and 2326 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Blaupunkt (Ideal), Berlin, später Hildesheim
Collections
The model Frankfurt is part of the collections of the following members.
Forum contributions about this model: Blaupunkt Ideal,: Frankfurt 7.630.640 ab 3272001
Threads: 2 | Posts: 5
Hej
I have this Blaupunkt Frankfurt 7 630 640 000, C 3699841(1970), It says on the cover one can swap the polarity depending on what car one have. Where is this done in the radio? I just can't find it.
On the top cover one can see VOLT(inprinted) but the pcb board sticking out at the back has minus on one side & plus on the other. I think it should say 6V resp 12V.
Any idees?
BR//Ulf , Stockholm
Ulf Olovson, 18.Jul.24

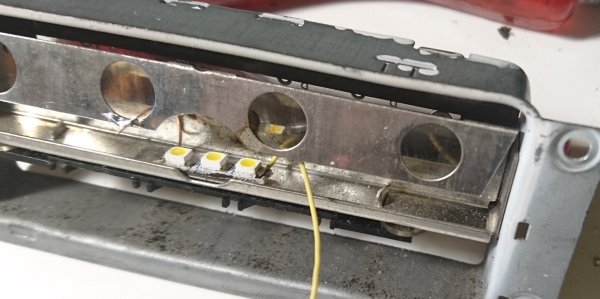

3 weiße SMD LEDs (hab ich ausgeschlachtet), ein Tropfen Sekundenkleber, und ein 560 Ω Vorwiderstand:
nie wieder Birnchen wechseln .........
Demontage: Feder am Zeiger aushängen, Zeiger ausklipsen, Skala mit Zeiger nach vorne rausziehen
Gottfried Silberhorn, 07.Feb.21
