Frankfurt 7.632.641.200 ab 5500001

• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1972/1973

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 113516

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

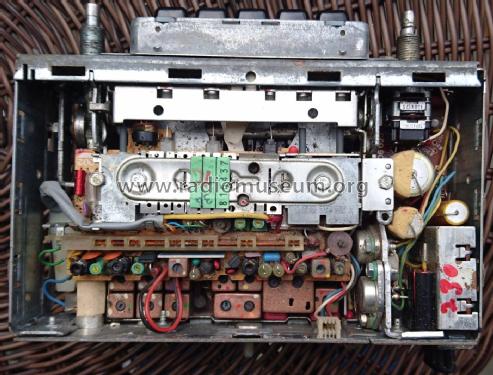

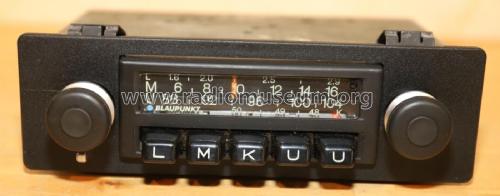

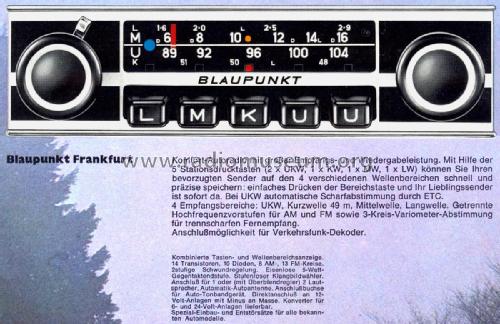

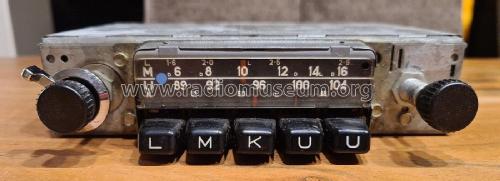

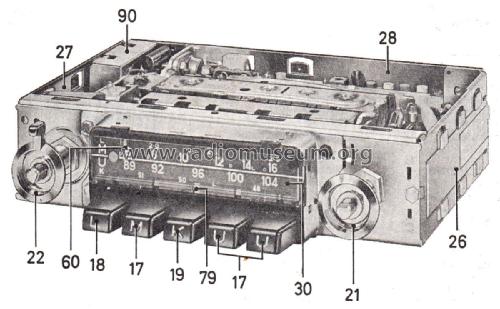

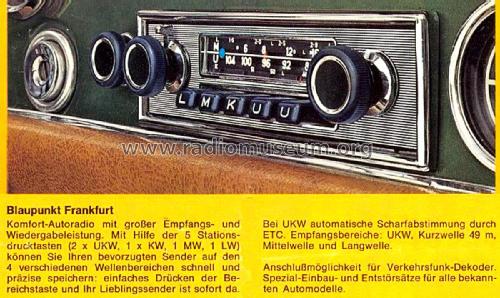

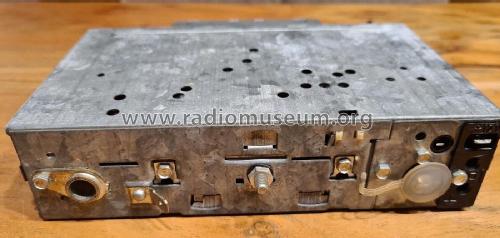

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 14

• Semiconductors
• AF106 BF255 BF540 BF540 BF540 BF254 BF450 BF255 BF451 BC238 BC238 BC328 AD156 AD157 BA111 AA119 1N4148 ZG1 ZPD9,1

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz; 3 AF stage(s)

• Tuned circuits
• 8 AM circuit(s)     13 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 5 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: Frankfurt 7.632.641.200 ab 5500001 - Blaupunkt Ideal, Berlin,

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 177 x 43 x 135 mm / 7 x 1.7 x 5.3 inch

• Notes

• 10 Dioden, Eisenlose Gegentakt-Endstufe.
  Anschlußmöglichkeit für Verkehrsfunk-Dekoder.

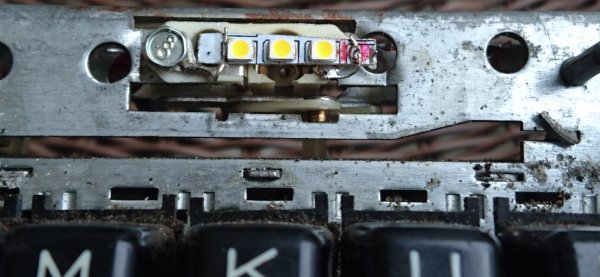

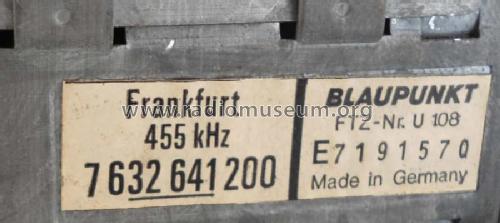

  Laut Schema ist AM-ZF 452 oder 460 kHz. Typschilder zeigen dagegen 455 kHz.

• Net weight (2.2 lb = 1 kg)
• 1.2 kg / 2 lb 10.3 oz (2.643 lb)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Marc Goeritz. See "Data change" for further contributors.
