Frankfurt 7.636.642 ab 1600001
Blaupunkt (Ideal), Berlin, später Hildesheim
- Country
- Germany
- Manufacturer / Brand
- Blaupunkt (Ideal), Berlin, später Hildesheim
- Year
- 1976 ?
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 150488
-
- alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
- Brand: Rotstern

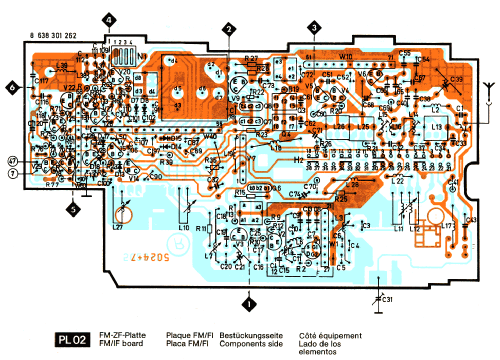

Bild aus Blaupunkt Service Unterlagen
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 23
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz
- Tuned circuits
- 9 AM circuit(s) 9 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Metal case
- from Radiomuseum.org
- Model: Frankfurt 7.636.642 ab 1600001 - Blaupunkt Ideal, Berlin,
- Shape
- Chassis only or for «building in»

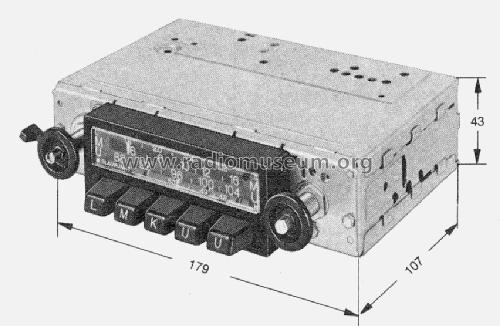

- Dimensions (WHD)
- 179 x 43 x 107 mm / 7 x 1.7 x 4.2 inch
- Notes
- 1 Hybrid in der FM-ZF; 3-Kreis Variometer Abstimmung.
- Mentioned in
- Original Blaupunkt Service Unterlagen
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Josef Pilz. See "Data change" for further contributors.
