• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1976 ?

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 151948

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 15

• Semiconductors
• FTO601 BF255 BF540 BF254 BF451 BF255 BF255 BF451 BC238 BC238 BC238 BC238 BC328 BD433 BD434 AA119 1N4148 ZPD9,1 ZG1

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Tuned circuits
• 10 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org

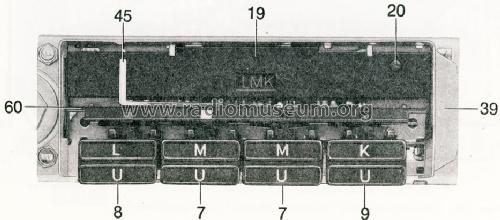

• Model: Frankfurt Commander 7.636.644 / 648 ab 1600001 - Blaupunkt Ideal, Berlin,

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 179 x 43 x 113 mm / 7 x 1.7 x 4.4 inch

• Notes

• 1 Hybrid und 3 Keramikschwinger in FM-ZF, und 4 Keramikschwiger in der AM-ZF.

  Dioden teilweise mehrfach vorhanden.

• Mentioned in
• Original Blaupunkt Servie Unterlagen

• Literature/Schematics (1)
• -- Original-techn. papers.

• Literature/Schematics (2)
• -- Original-techn. papers. (Service-Unterlagen, Druck 09.76)

• Author
• Model page created by Josef Pilz. See "Data change" for further contributors.

• Other Models

• Here you find 3587 models, 3275 with images and 2328 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Blaupunkt (Ideal), Berlin, später Hildesheim
