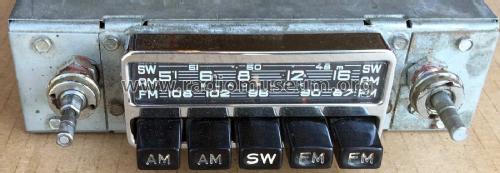

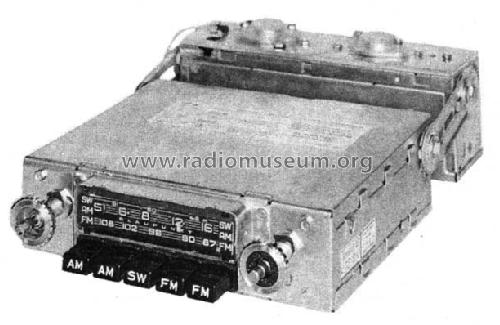

Frankfurt US 36650

Blaupunkt (Ideal), Berlin, später Hildesheim

Data
Forum
Pictures
Collections

  • Year
  • 1966/1967
  • Category
  • Car Radio, perhaps also + sound player/recorder
  • Radiomuseum.org ID
  • 26779
    • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
    • Brand: Rotstern

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 12
  • Main principle
  • Superheterodyne (common); ZF/IF 460 or 452/10700 kHz
  • Tuned circuits
  • 8 AM circuit(s)     14 FM circuit(s)
  • Wave bands
  • Broadcast, Short Wave plus FM or UHF.
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 6; 12 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 5 W (unknown quality)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Frankfurt US 36650 - Blaupunkt Ideal, Berlin,
  • Shape
  • Chassis only or for «building in»
  • Notes
  • Halbleiter teilweise mehrfach vorhanden.
    Technische Daten und Ausführung wie Frankfurt, jedoch erweiterter UKW-Bereich (87-108 MHz) und amerikanisches Marineband (2,15-2,75 MHz) anstatt LW. Ausgangsleistung bei 12 V = 7 W.
  • Net weight (2.2 lb = 1 kg)
  • 2.8 kg / 6 lb 2.7 oz (6.167 lb)
  • Price in first year of sale
  • 389.00 DM
  • External source of data
  • erb
  • Literature/Schematics (1)
  • -- Original-techn. papers.
