• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1977 ??

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 150011

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

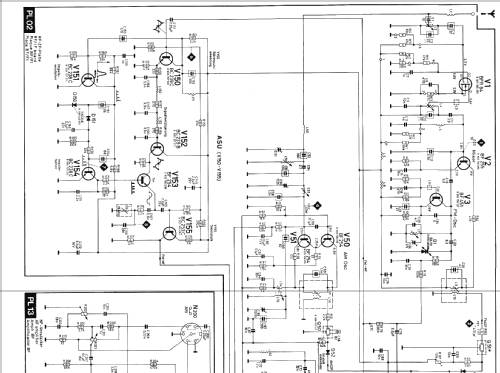

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 20

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Loudspeaker
• 3 Loudspeakers

• Material
• Metal case

• from Radiomuseum.org
• Model: Frankfurt US 7.636.624 ab 8000001 - Blaupunkt Ideal, Berlin,

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 179 x 43 x 107 mm / 7 x 1.7 x 4.2 inch

• Notes
• 1 IC; 3-Kreis Variometer Abstimmung.

• Mentioned in
• Original Blaupunkt Service Unterlagen

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Josef Pilz. See "Data change" for further contributors.
