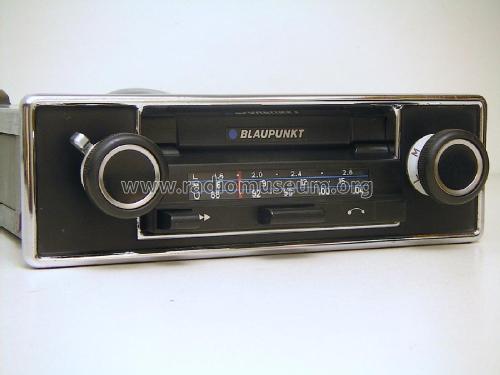

Goslar CR 7.634.931 ab 7140001

• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1974

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 147759

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 35

• Semiconductors
• AF106 BF540 AF201 BF451 BF240 BF241 BC183 BC238 BC328 BC307 S153T BD433 BD434 AA112 AA119 BB103 ZG1 ZPD9,1 1N4148 SE30 ZF5,6 ZG18

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 10 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: Goslar CR 7.634.931 ab 7140001 - Blaupunkt Ideal, Berlin,

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 178 x 50 x 165 mm / 7 x 2 x 6.5 inch

• Notes

• AM:1 Keramikfilter 3-Kreis-Variometer-Abstimmung FM 3-Kreis-Variocap-Abstimmung. Ausgangsleistung 2x5 Watt.

  Halbleiter teilweise mehrfach vorhanden.

• Price in first year of sale
• 500.00 DM

• Mentioned in
• Original Blaupunkt Service Unterlagen

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Josef Pilz. See "Data change" for further contributors.
