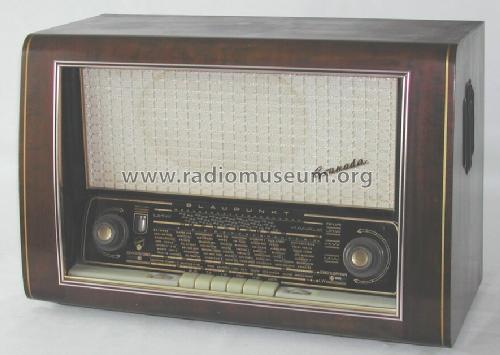

Granada 3D 2220

• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1955/1956

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 25070

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EM80 EL84

• Main principle
• Superheterodyne (common); ZF/IF 460/10,7 kHz

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110/220 Volt

• Loudspeaker
• 3 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Granada 3D 2220 - Blaupunkt Ideal, Berlin,

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 580 x 383 x 275 mm / 22.8 x 15.1 x 10.8 inch

• Net weight (2.2 lb = 1 kg)
• 11.8 kg / 25 lb 15.9 oz (25.991 lb)

• External source of data
• Wiesmüller

• Source of data
• Lange, Schaltungen der Funkindustrie
