HC30 7.614.030
Blaupunkt (Ideal), Berlin, später Hildesheim
- Country
- Germany
- Manufacturer / Brand
- Blaupunkt (Ideal), Berlin, später Hildesheim
- Year
- 1970–1972
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 28111
-
- alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
- Brand: Rotstern

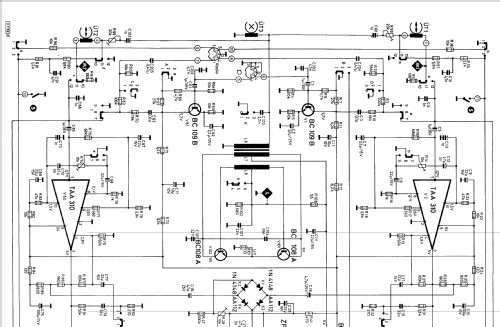

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 11
- Semiconductors
- BC109 BC109 BC108 BC108 BC108 BC108 BC108 BC178 BC172 BC172 BC108 1N4148 AA112 ZF10 TAA310 TAA310 B30C150
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Wooden case
- from Radiomuseum.org

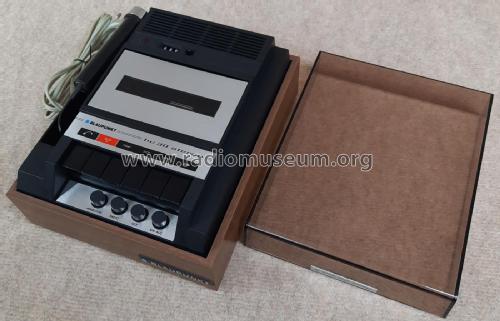

- Model: HC30 7.614.030 - Blaupunkt Ideal, Berlin,
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 200 x 115 x 245 mm / 7.9 x 4.5 x 9.6 inch
- Notes
-
Stereo-Kassetten-Recorder. Frequenzbereich 30···9000 Hz.
Dioden teilweise mehrfach vorhanden.
- Net weight (2.2 lb = 1 kg)
- 2.9 kg / 6 lb 6.2 oz (6.388 lb)
- External source of data
- Erb
- Source of data
- Handbuch VDRG 1970/1971
- Literature/Schematics (1)
- -- Original-techn. papers. (Service-Unterlagen 04.73)
