• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1986 ??

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 155662

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 16

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 10700 kHz

• Tuned circuits
• 6 FM circuit(s)

• Wave bands
• FM Broadcast Band Only

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 24 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

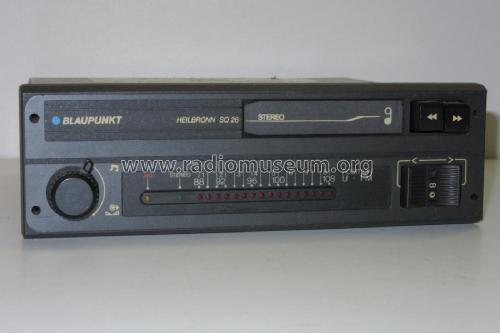

• Model: Heilbronn SQ 26 7.645.750.010 - Blaupunkt Ideal, Berlin,

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 180 x 52 x 160 mm / 7.1 x 2 x 6.3 inch

• Notes
• 11 IC; PLL-Synthesitzer, 2 x 12 Watt Musikleistung an 2 Ohm.

• Mentioned in
• Original Blaupunkt Service Unterlagen

• Author
• Model page created by Josef Pilz. See "Data change" for further contributors.
