• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1974–1977

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 29420

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

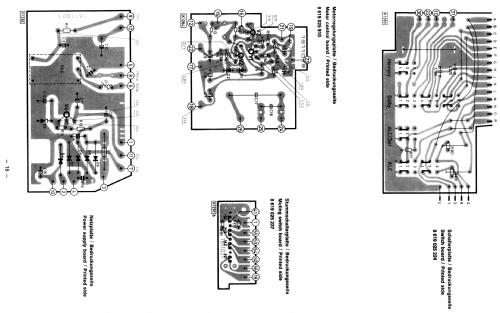

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 38

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Heim-Cassetten-Recorder HC60 7.614.200 - Blaupunkt Ideal, Berlin,

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 350 x 120 x 240 mm / 13.8 x 4.7 x 9.4 inch

• Notes
• Abschaltbare Dolby-Rauschunterdrückung.

• Net weight (2.2 lb = 1 kg)
• 4.7 kg / 10 lb 5.6 oz (10.352 lb)

• External source of data
• Erb

• Source of data
• Katalog RFP 1974

• Mentioned in
• Handbuch VDRG 1975/1976 (und 1976/77)
