• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1973–1975

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 29152

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

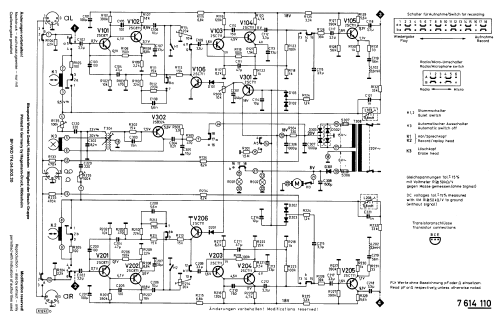

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 13

• Semiconductors
• 2SC871 2SC871 2SC871 2SC871 2SC711 2SC711 2SC711 2SC711 2SC711 2SC711 2SC711 2SC711 2SB324

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

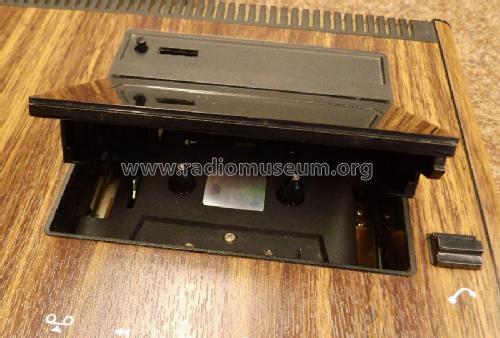

• Model: HC40 7.614.110 - Blaupunkt Ideal, Berlin,

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 263 x 80 x 218 mm / 10.4 x 3.1 x 8.6 inch

• Notes

• Wiedergabe nur mit Rundfunkgerät oder Verstärkeranlage.

  Frequenzumfang 80 - 10000 Hz

• Net weight (2.2 lb = 1 kg)
• 2.5 kg / 5 lb 8.1 oz (5.507 lb)

• External source of data
• Erb

• Source of data
• Katalog RFP 1973
