• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1969/1970

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 132207

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 11

• Semiconductors
• AF106 BF243 AF126 AF126 AF126 AF121 AF121 BC108 BC108 AD148 AD148

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 6; 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org

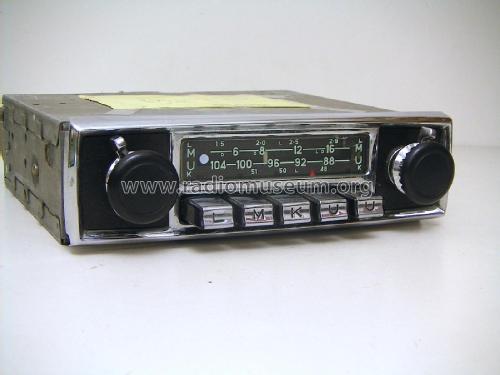

• Model: Karlsruhe de Luxe 7.639.631 ab 1000001 - Blaupunkt Ideal, Berlin,

• Shape
• Chassis only or for «building in»

• Notes
• Alternative Bestückung der Endstuten-Transistoren mit 2x AD139.

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Richard Winter. See "Data change" for further contributors.
