• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1960/1961

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 23656

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

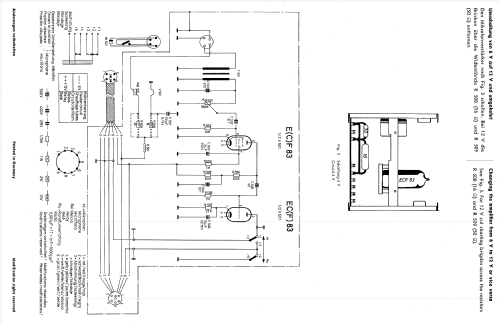

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 EF89 ECH81 EBF89 EAA91 ECF83 ECF83

• Number of Transistors
• 3

• Semiconductors
• TF80/30 TF80/30 TF80/30 RL232 RL232

• Main principle
• Superheterodyne (common); ZF/IF 460/10700/6700 kHz

• Tuned circuits
• 6 AM circuit(s)     12 FM circuit(s)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios)

• Material
• Metal case

• from Radiomuseum.org
• Model: Kleinbus-Anlage Ulm IV TR - Blaupunkt Ideal, Berlin,

• Shape
• Chassis only or for «building in»

• Notes

• Die Kleinbus-Anlage Ulm IV TR ist nur in Verbindung mit dem Frankfurt TR  zu verwenden.

• Net weight (2.2 lb = 1 kg)
• 5.2 kg / 11 lb 7.3 oz (11.454 lb)

• Price in first year of sale
• 620.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1960/61

• Literature/Schematics (1)
• -- Original-techn. papers.
