Köln IQR 47 7.646.894.010
Blaupunkt (Ideal), Berlin, später Hildesheim
- Country
- Germany
- Manufacturer / Brand
- Blaupunkt (Ideal), Berlin, später Hildesheim
- Year
- 1987
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 160028
-
- alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
- Brand: Rotstern
Bild aus Blaupunkt Unterlagen

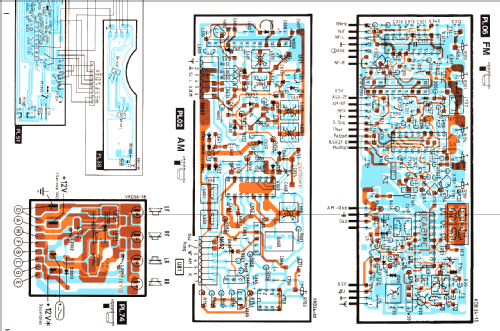

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 21
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 26 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: Köln IQR 47 7.646.894.010 - Blaupunkt Ideal, Berlin,
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 180 x 52 x 160 mm / 7.1 x 2 x 6.3 inch
- Notes
- 18 IC; Köln IQR 47, LCD-Anzeige Suchlauf, PCI, ARI, Senderspeicher, Ton und Balance-Regler, Musikleistung 4 x 6,5 Watt an 4 Ohm, vier Lautsprecheranschlüsse.
- Mentioned in

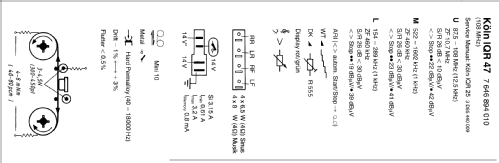

- Original Blaupunkt Service Unterlagen
- Author
- Model page created by Josef Pilz. See "Data change" for further contributors.
