Köln ab X 1400001

• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1966/1967

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 26627

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

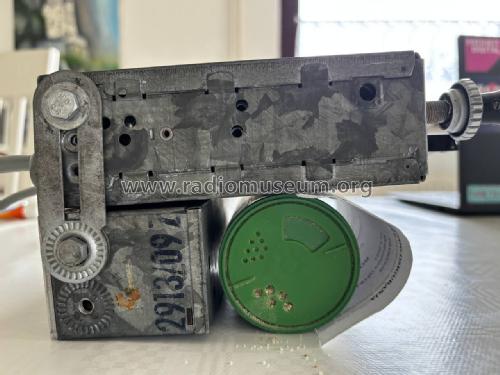

• Picture

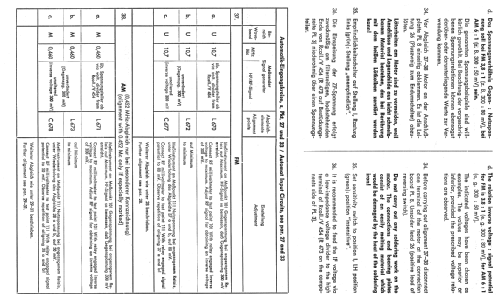

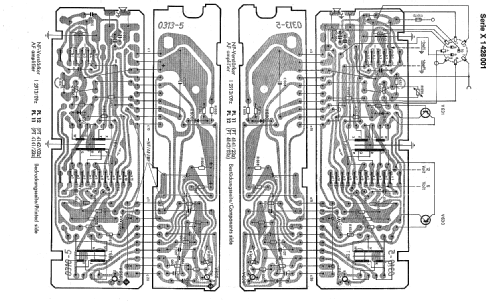

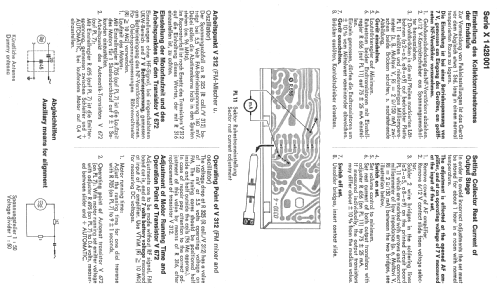

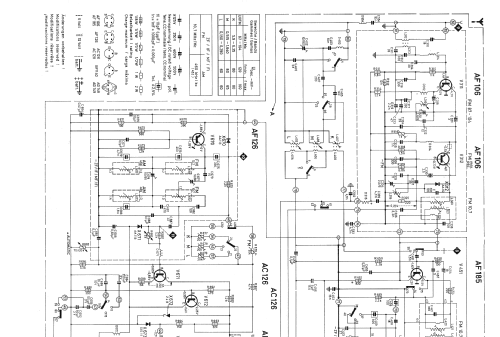

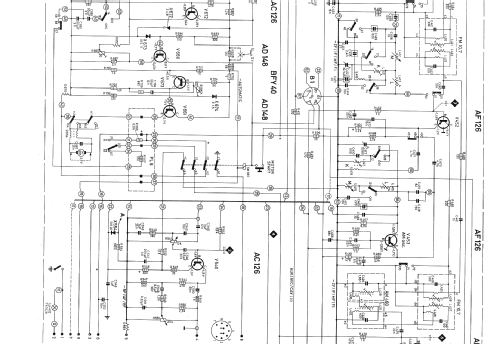

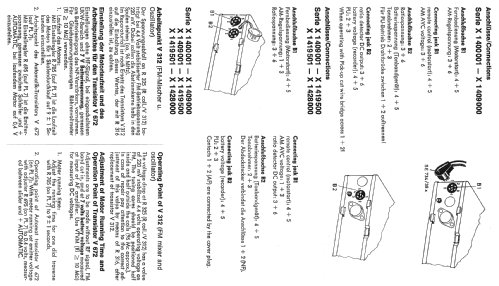

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 18

• Semiconductors
• AF106 AF106 AF185 AF126 AF126 AF185 AF126 AF126 AC126 AC126 AD148 BFY40 AD148 AC126 AC126 AC128 AD149 AD149 AA112 AA113 SIS20 BA121 Z4B4,3 Z1,5 E30C60 AA112

• Main principle
• Superheterodyne (common); ZF/IF 460 or 452/10700 kHz

• Tuned circuits
• 10 AM circuit(s)     16 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 6; 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 5 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: Köln ab X 1400001 - Blaupunkt Ideal, Berlin,

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 178 x 50 x 147 mm / 7 x 2 x 5.8 inch

• Notes
• Halbleiter teilweise mehrfach vorhanden.
  Automatischer Sendersuchlauf Selectomat; Omnimat-Wählautomatik; Ausgangsleistung bei 12 V = 7 W; tropenfest.

• Net weight (2.2 lb = 1 kg)
• 3.1 kg / 6 lb 13.3 oz (6.828 lb)

• Price in first year of sale
• 595.00 DM

• External source of data
• erb

• Source of data
• Handbuch VDRG 1966/1967

• Literature/Schematics (1)
• -- Original-techn. papers.

• Other Models

• Here you find 3589 models, 3277 with images and 2329 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Blaupunkt (Ideal), Berlin, später Hildesheim
