• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1959/1960

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 22361

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 EF89 ECH81 EBF89 EABC80 ECF80

• Number of Transistors
• 3

• Semiconductors
• TF80/30 TF80/30 TF80/30 RL232 RL232

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 6/12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org

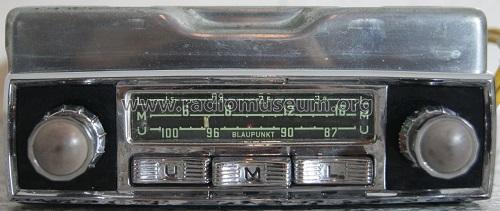

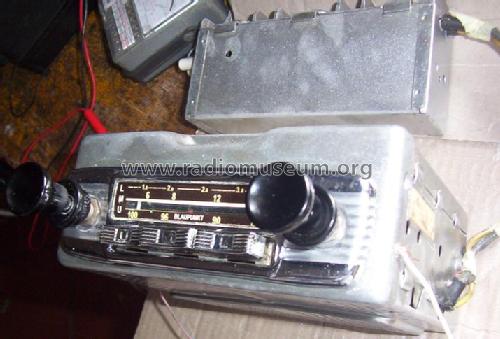

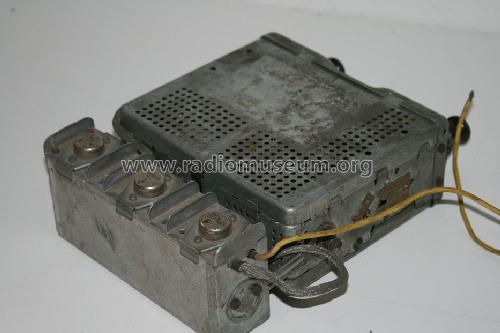

• Model: Köln Transistor ab G 920001 - Blaupunkt Ideal, Berlin,

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 183 x 76 x 168 mm / 7.2 x 3 x 6.6 inch

• Notes
• Transistoren: 2× TF80/30, TF80/30Z; Dioden: 2× RL232

• Net weight (2.2 lb = 1 kg)
• 4.3 kg / 9 lb 7.5 oz (9.471 lb)

• Price in first year of sale
• 485.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1959/60

• Mentioned in
• HdB d.Rdf-& Ferns-GrH 1958/59

• Literature/Schematics (1)

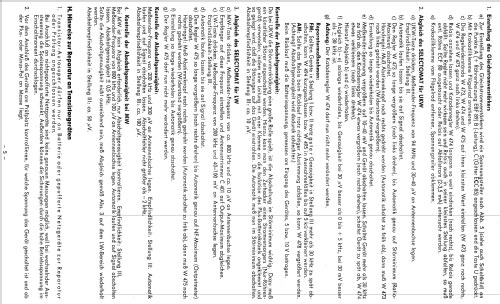

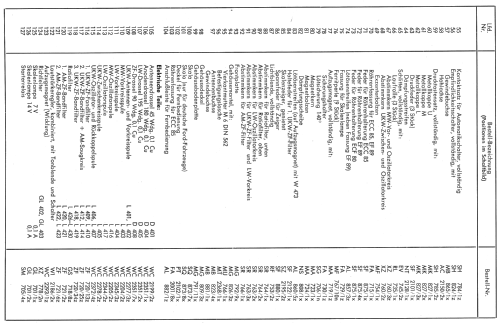

• -- Original-techn. papers.
