• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1956/1957

• Category
• Pre-stage (adaptor for SW/FM/VHF/UHF incl. built-in), Frequency converter

• Radiomuseum.org ID
• 20942

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• ECC81

• Tuned circuits
• 3 AM circuit(s)

• Wave bands
• Short Wave (SW only)

• Power type and voltage
• Powered by external power supply or a main unit.

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

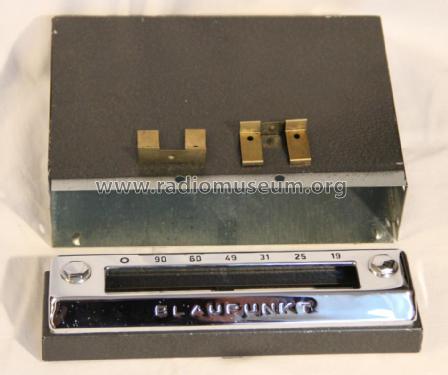

• Model: Kurzwellen-Vorsatzgerät KV601K - Blaupunkt Ideal, Berlin,

• Dimensions (WHD)
• 185 x 470 x 130 mm / 7.3 x 18.5 x 5.1 inch

• Notes
• Vorsatzgerät für 6 Kurzwellenbänder (19-, 25-, 31-, 49-, 60- und 90-m-Band), die auf Mittelwelle transponiert werden.

• Net weight (2.2 lb = 1 kg)
• 1.2 kg / 2 lb 10.3 oz (2.643 lb)

• Price in first year of sale
• 80.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1956/57
