LAB 308 7621981
Blaupunkt (Ideal), Berlin, später Hildesheim
- Country
- Germany
- Manufacturer / Brand
- Blaupunkt (Ideal), Berlin, später Hildesheim
- Year
- 1971/1972
- Category
- Loudspeaker, headphone or earphone
- Radiomuseum.org ID
- 150177
-
- alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
- Brand: Rotstern
Click on the schematic thumbnail to request the schematic as a free document.
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- 4 Loudspeakers
- Material
- Various materials
- from Radiomuseum.org
- Model: LAB 308 7621981 - Blaupunkt Ideal, Berlin,
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 500 x 240 x 170 mm / 19.7 x 9.4 x 6.7 inch
- Notes
-

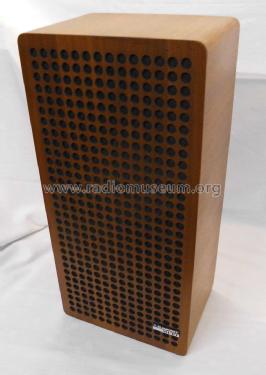

Blaupunkt Regal- /Standbox Modell LAB 308.
30 Watt Sinus, 4 Ohm, 35 - 22,000 Hz.

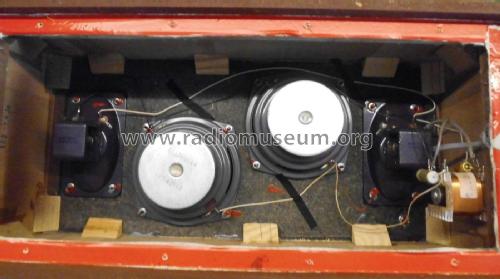

2x TT, 2x MHT, Trennfrequenz 3500 Hz.

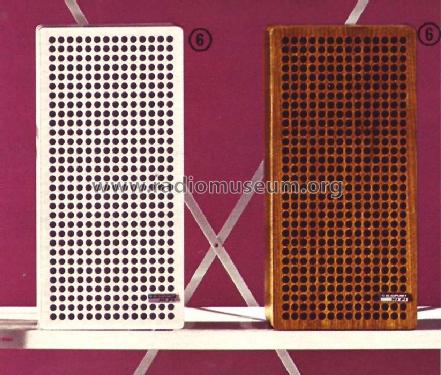

Gehäusefarben: Nussbaum natur, Perlweiss.
- Literature/Schematics (1)

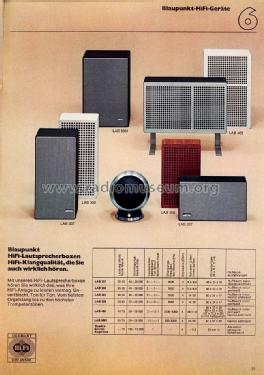

- -- Original prospect or advert
- Author
- Model page created by Richard Winter. See "Data change" for further contributors.
