• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1971

• Category
• Loudspeaker, headphone or earphone

• Radiomuseum.org ID
• 261441

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• No Power needed

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 6 W (10 W max.)

• Material
• Wooden case

• from Radiomuseum.org

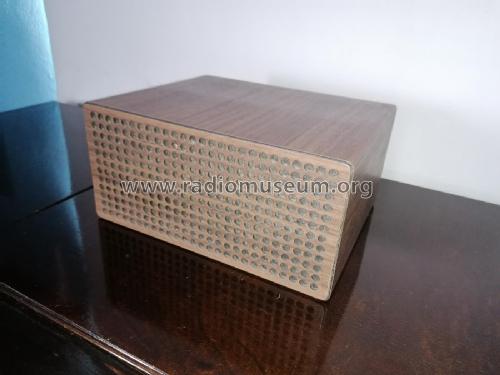

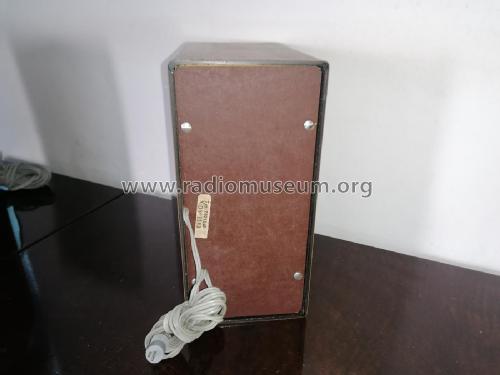

• Model: Lautsprecherbox LAB062 7.621.940 - Blaupunkt Ideal, Berlin,

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 250 x 120 x 200 mm / 9.8 x 4.7 x 7.9 inch

• Notes

• Nennbelastbarkeit: 6 W
  Grenzbelastbarkeit: 10 W
  Impedanz: 4 Ω
  Übertragungsbereich: 80 ... 15000 Hz
  Inhalt: 4,7 Liter


• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Heiko zur Mühlen. See "Data change" for further contributors.
