Lido 94300 ab V 350001

• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1964/1965

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 841

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

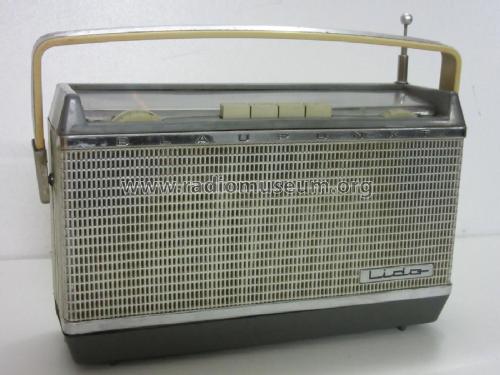

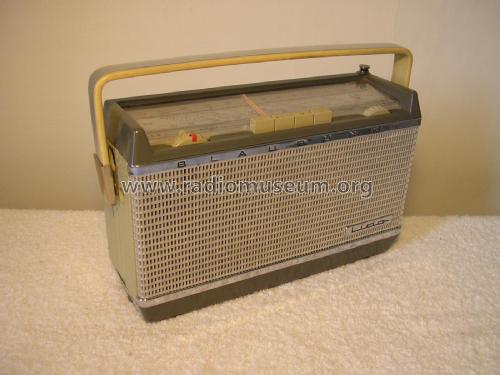

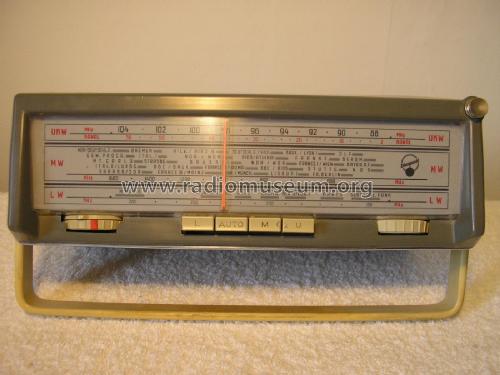

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors
• AF134 AF135 AF136 AF137 AF138 AC122 AC122 AC117 AC117 AA112 AA112 AA112 1,4-St10

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Storage and/or dry batteries / 2 x 4,5 oder 1 x 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Power out
• 1 W (unknown quality)

• from Radiomuseum.org
• Model: Lido 94300 [ab V 350001] - Blaupunkt Ideal, Berlin,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 240 x 152 x 78 mm / 9.4 x 6 x 3.1 inch

• Net weight (2.2 lb = 1 kg)
• 1.8 kg / 3 lb 15.4 oz (3.965 lb)

• Price in first year of sale
• 295.00 DM

• Source of data

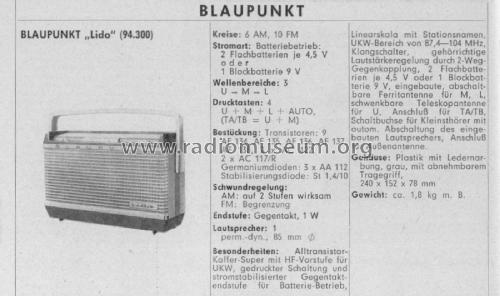

• Handbuch VDRG 1964/1965 / Radiokatalog Band 1, Ernst Erb

• Mentioned in
• Funkschau

• Literature/Schematics (1)
• -- Original-techn. papers. (Service-Manual, Serie V)

• Literature/Schematics (2)

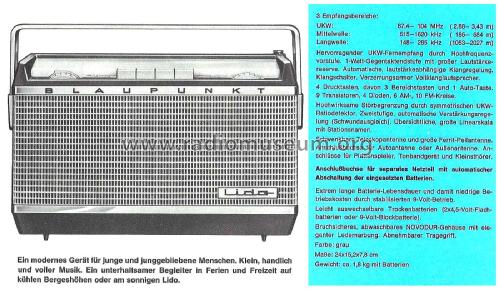

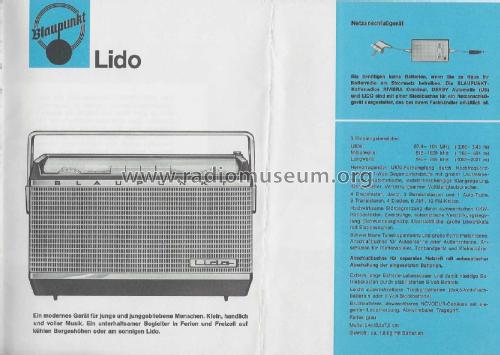

• - - Manufacturers Literature (Katalog, Autoradios / Kofferradios '64)
