• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1971

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 212955

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

Click on the schematic thumbnail to request the schematic as a free document.

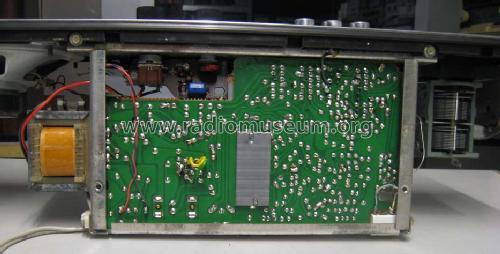

• Number of Transistors
• 11

• Semiconductors
• AF106 AF121 AF126 AF201 AF201 BF243 BC108 AC151 AC187 AC188 AD161

• Main principle
• Superheterodyne (common); ZF/IF 470/10700 kHz

• Tuned circuits
• 7 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 3 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Madeira 7.621.250 - Blaupunkt Ideal, Berlin,

• Shape
• Tablemodel with Push Buttons.

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Richard Winter. See "Data change" for further contributors.
