• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1973/1974

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 85780

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460 kHz

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

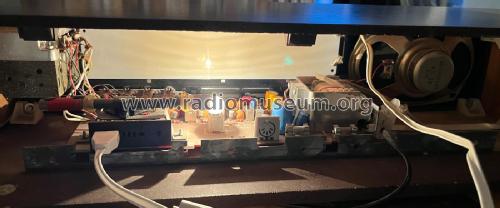

• Model: Madeira 7.623.261 - Blaupunkt Ideal, Berlin,

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 510 x 120 x 163 mm / 20.1 x 4.7 x 6.4 inch

• Notes
• Dioden: 5

• Net weight (2.2 lb = 1 kg)
• 3 kg / 6 lb 9.7 oz (6.608 lb)

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Bernd Pötzsch. See "Data change" for further contributors.

• Other Models

• Here you find 3586 models, 3273 with images and 2328 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Blaupunkt (Ideal), Berlin, später Hildesheim
