• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1983/1984

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 136571

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

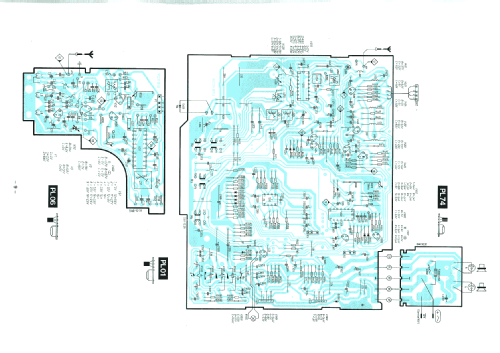

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org

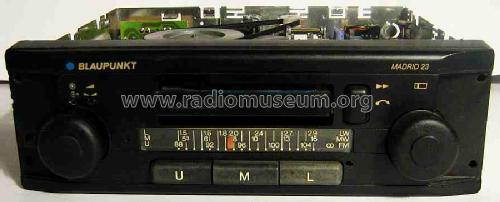

• Model: Madrid 23 7.643.542.410 - Blaupunkt Ideal, Berlin,

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 180 x 60 x 190 mm / 7.1 x 2.4 x 7.5 inch

• Notes
• Blaupunkt Madrid 23
  Stereoempfang, Skala analog, UKW 88 bis 104 MHz, MW 530 bis 1600 kHz, LW 1,5 bis 2,9 kHz, Balanze.-und Tonregelung,
  Kassettenteil mit schnellem Vorlauf, stereo Lautsprecheranschlüsse.

• Net weight (2.2 lb = 1 kg)
• 1.2 kg / 2 lb 10.3 oz (2.643 lb)

• Price in first year of sale
• 2,490.00 ATS

• Author
• Model page created by Karlheinz Fischer. See "Data change" for further contributors.
