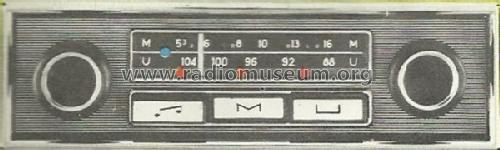

Mannheim 7.638.030 ab Z 1100001
Blaupunkt (Ideal), Berlin, später Hildesheim
- Country
- Germany
- Manufacturer / Brand
- Blaupunkt (Ideal), Berlin, später Hildesheim
- Year
- 1968/1969
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 27483
-
- alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
- Brand: Rotstern
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 10
- Semiconductors
- AF106 AF201 AF121 AF126 AF126 AF121 AC126 BC108 AC153 AC153 AA112 Z1,5 BA170 or. ZG1 or. 0,7St60
- Main principle
- Superheterodyne (common); ZF/IF 460 or 452/10700 kHz
- Tuned circuits
- 7 AM circuit(s) 11 FM circuit(s)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 6; 12 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 2.5 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: Mannheim 7.638.030 ab Z 1100001 - Blaupunkt Ideal, Berlin,
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 179 x 42 x 116 mm / 7 x 1.7 x 4.6 inch
- Notes
- Halbleiter teilweise mehrfach vorhanden.
- Net weight (2.2 lb = 1 kg)
- 1.2 kg / 2 lb 10.3 oz (2.643 lb)
- Price in first year of sale
- 208.00 DM
- External source of data
- erb
- Source of data
- Handbuch VDRG 1968/1969
