• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1969–1971

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 27862

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

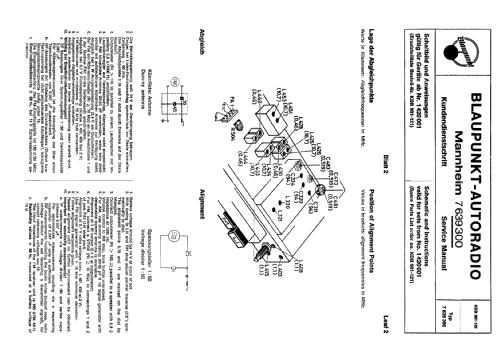

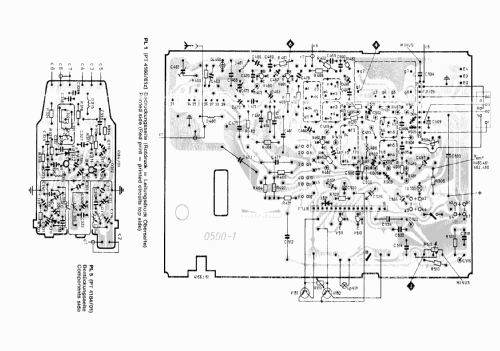

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors
• AF106 AF126 BF243 AF121 AC163 BC108 AD161 AD162 AA112 AA119 BA124 ZG1

• Main principle
• Superheterodyne (common); ZF/IF 460 or 452/10700 kHz

• Tuned circuits
• 8 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 4 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

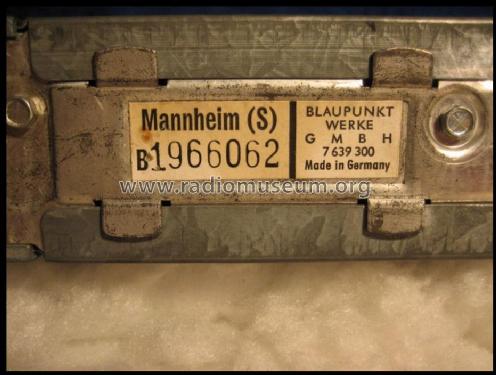

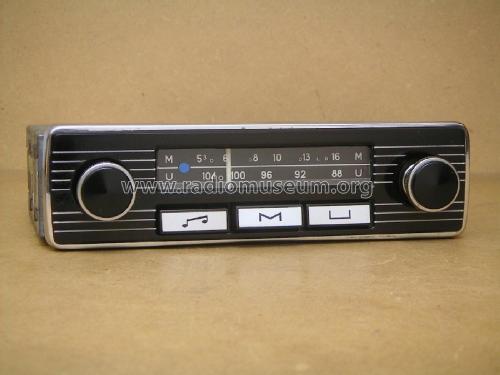

• Model: Mannheim 7.639.300 ab 1420001 - Blaupunkt Ideal, Berlin,

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 179 x 42 x 116 mm / 7 x 1.7 x 4.6 inch

• Notes
• Halbleiter teilweise mehrfach vorhanden.

• Net weight (2.2 lb = 1 kg)
• 1.2 kg / 2 lb 10.3 oz (2.643 lb)

• External source of data
• erb

• Source of data
• Handbuch VDRG 1969/1970

• Mentioned in
• Handbuch VDRG 1970/1971

• Literature/Schematics (1)
• -- Original-techn. papers.
