Marimba CR 7.659.550
Blaupunkt (Ideal), Berlin, später Hildesheim
- Country
- Germany
- Manufacturer / Brand
- Blaupunkt (Ideal), Berlin, später Hildesheim
- Year
- 1969–1972
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 27798
-
- alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
- Brand: Rotstern

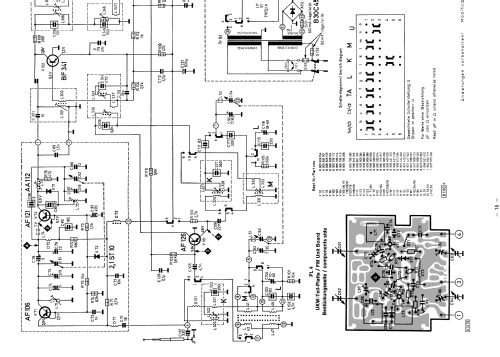

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 20
- Semiconductors
- AF106 AF121 AF201 or. BF341 AF201 or. BF342 AF201 or. BF343 AF126 BC108 BC262 AC187 AC188 AD161 AA112 AA119 2,1-St10 2,8St10 SFD037 B30C450 ZD9.1 TAA310 AC176 AC153 BA100
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 7 AM circuit(s) 11 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Line / Batteries (any type) / 110; 220 / D: 6 x 1.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch
- Power out
- 2 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org

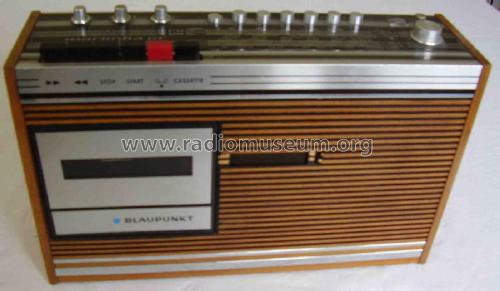

- Model: Marimba CR 7.659.550 - Blaupunkt Ideal, Berlin,
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 364 x 218 x 102 mm / 14.3 x 8.6 x 4 inch
- Notes
-
1 IC.
KW 49m Band, getrennte Höhen-/ Tiefenreglung. Instrument für Batteriekontrolle. Aussteuerungsautomatik für Cassetten-Aufnahme.
Gehäuse: Palisander; mit 6 Schrauben total zerlegbar.Gemäss Schaltplänen wurden im ZF-Verstärker Germanium- oder Silizium-Transistoren eingesetzt, beides PNP-Typen. Die Dimensionierung der Bauteile für die Arbeitspunkte blieb dabei unverändert. Auch die Typbezeichnung 7.659.550 war identisch.
Die Grosshandelskataloge VDRG und RFP nennen ein Gewicht von 5,2 kg incl. Zubehör, das Gewicht ohne Batterien beträgt jedoch 4,5 kg.
Halbleiterliste: Je 1x pro Typ.
Blaupunkt fertigte das Modell unter der Bezeichnung Trabant RT14 auch für Siemens.
- Net weight (2.2 lb = 1 kg)
- 4.5 kg / 9 lb 14.6 oz (9.912 lb)
- External source of data
- erb
- Source of data
- Handbuch VDRG 1969/1970
- Mentioned in
- Handbuch RFP 1970/71 S.327 (Thiele)
- Literature/Schematics (1)
- -- Original-techn. papers.
