• Year
  • 1977 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 75648
    • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
    • Brand: Rotstern

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 10
  • Main principle
  • Superheterodyne (common); ZF/IF 10700/455 kHz; 1 AF stage(s)
  • Tuned circuits
  • 5 AM circuit(s)     5 FM circuit(s)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Power out
  • 0.7 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org

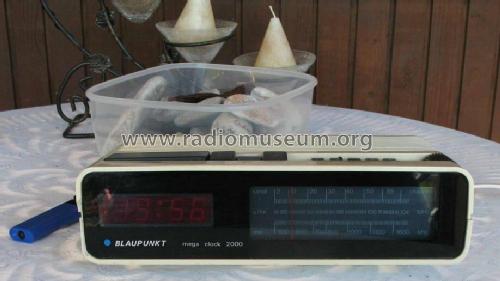

  • Model: Mega Clock 2000 7.627.220 - Blaupunkt Ideal, Berlin,
  • Shape
  • Tablemodel with Clock ((Alarm-) Clock Radio).
  • Dimensions (WHD)
  • 250 x 70 x 160 mm / 9.8 x 2.8 x 6.3 inch
  • Notes
  • NF-IC: M5118L; Umschaltbar 50/60 Hz. Uhren-IC ist Bestanteil der Uhrenplatte, 5 FM-Kreise + 1 Keramikfilter 10,7 MHz
  • Net weight (2.2 lb = 1 kg)
  • 1.2 kg / 2 lb 10.3 oz (2.643 lb)
  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Bernd Pötzsch. See "Data change" for further contributors.
