• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1976

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 148942

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 16

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 10700 kHz

• Tuned circuits
• 5 FM circuit(s)

• Wave bands
• FM Broadcast Band Only

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org
• Model: Minden Arimat 7.636.313 ab 2550110 - Blaupunkt Ideal, Berlin,

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 179 x 43 x 107 mm / 7 x 1.7 x 4.2 inch

• Notes
• 1 IC; 3 Kreis Variometer Abstimmung und 2 Keramikfilter in der ZF.

• Mentioned in

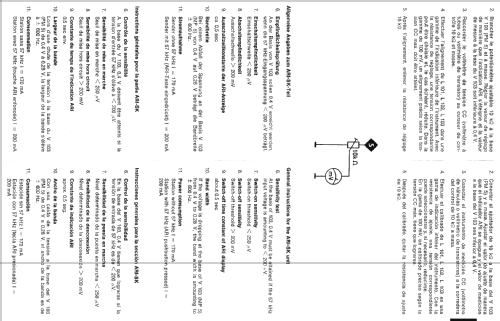

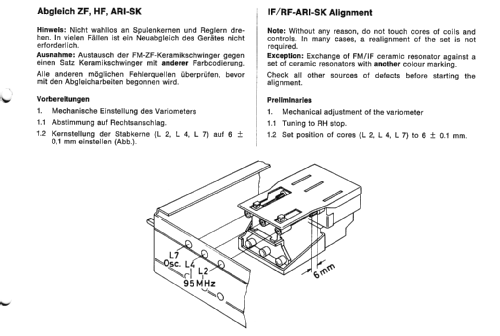

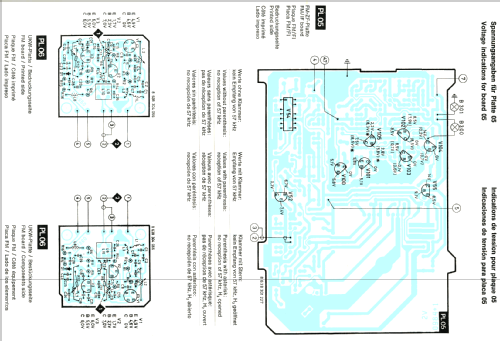

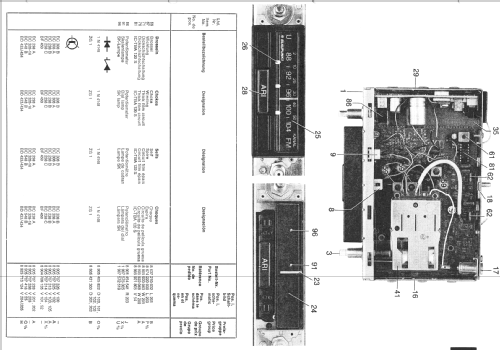

• Original Blaupunkt Service Unterlagen

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Josef Pilz. See "Data change" for further contributors.
