• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1967/1968

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 116594

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• A59-11W or A59-12W/2

• Number of Transistors
• 11

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

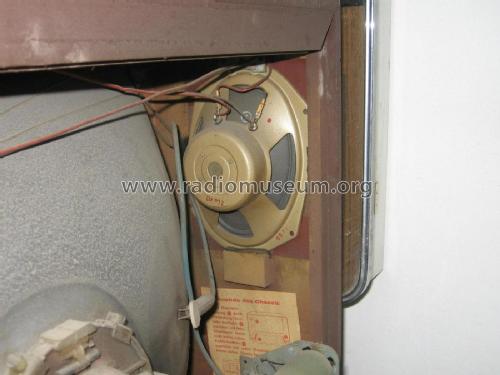

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org
• Model: Montana 7.677.170 - Blaupunkt Ideal, Berlin,

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 715 x 500 x 245 mm / 28.1 x 19.7 x 9.6 inch

• Notes

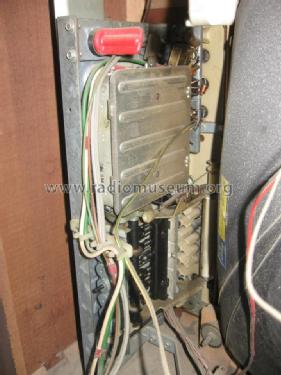

• VHF/UHF-Einblock-Drucktasten-Tuner.

• Net weight (2.2 lb = 1 kg)
• 27 kg / 59 lb 7.5 oz (59.471 lb)

• Source of data
• Handbuch VDRG 1967/1968

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
