München SCD09 7649960013

Blaupunkt (Ideal), Berlin, später Hildesheim

Data
Forum
Pictures
Collections

  • Year
  • 1990
  • Category
  • Car Radio, perhaps also + sound player/recorder
  • Radiomuseum.org ID
  • 180637
    • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
    • Brand: Rotstern

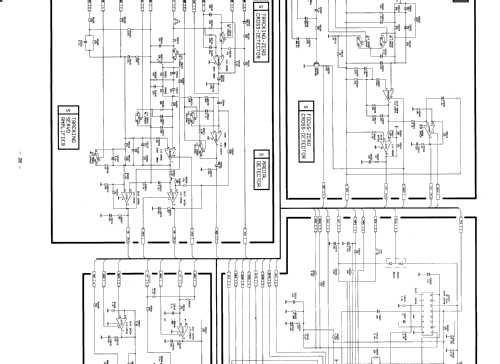

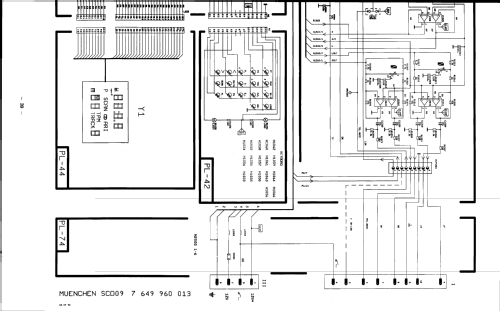

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast, Long Wave and FM or UHF.
  • Details
  • CD-Player, -Writer, MD, MOD (audio)
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: München SCD09 7649960013 - Blaupunkt Ideal, Berlin,
  • Shape
  • Chassis only or for «building in»
  • Dimensions (WHD)
  • 182 x 53 x 175 mm / 7.2 x 2.1 x 6.9 inch
  • Notes
  • Stereo Autoradio mit Compact-Disc-Spieler
    Besondere Funktionen:
    Anti-Diebstahl-Codierung
    Senderspeicher: 3 x 6 Plätze manuell, 1 Speicherebene TS (Travel Store) automatisches Scannen und Speichern von den 6 staerksten Regionalsendern auf Reisen
    Spezieller Einbau- Anschlusssatz erforderlich
    CD's werden mit Hilfe einer spezieller Cartrige eingeschoben
    Pre-Amp-Output 2,0 V an 2,2 KOhm

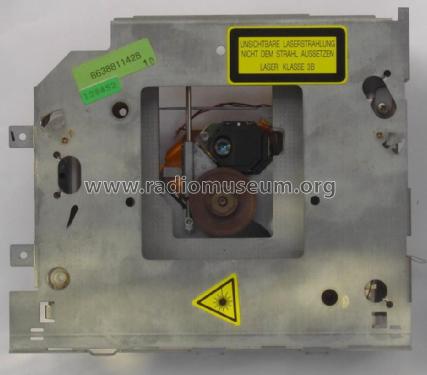

    CD: 15 bit 2fach-Oversampling 3-Strahl-Laser
    Anschluss an Verstärker erforderlich: z. B.: BQA208
  • Net weight (2.2 lb = 1 kg)
  • 1.3 kg / 2 lb 13.8 oz (2.863 lb)
  • Source of data
  • -- Original-techn. papers.
  • Author
  • Model page created by Alfred Przybilla. See "Data change" for further contributors.
