Multi Stereo System 7.607.231.000
Blaupunkt (Ideal), Berlin, später Hildesheim
- Country
- Germany
- Manufacturer / Brand
- Blaupunkt (Ideal), Berlin, später Hildesheim
- Year
- 1984/1985 ?
- Category
- Miscellaneous (Other, Various) - see notes
- Radiomuseum.org ID
- 334321
-
- alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
- Brand: Rotstern
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 15 W (60 W max.)
- Material
- Bakelite or Plastics (type unknown)
- from Radiomuseum.org
- Model: Multi Stereo System 7.607.231.000 - Blaupunkt Ideal, Berlin,
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 224 x 145 x 121 mm / 8.8 x 5.7 x 4.8 inch
- Notes
-

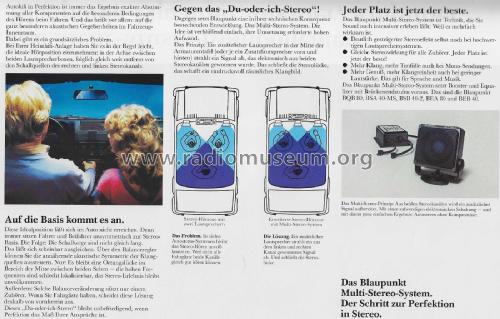

Das passive Blaupunkt Multi Stereo System besteht aus einer Weiche, die aus dem L und R Signal eines Endverstärkers (Booster, Endverstärker in Brückenschaltung), z.B. BQB-80, BSA-40 MS, BEA-80 oder BEB-40, ein Summen- bzw. Mittensignal erzeugt.
- Net weight (2.2 lb = 1 kg)
- 0.740 kg / 1 lb 10.1 oz (1.63 lb)
- Author
- Model page created by Andreas Rittsteiger. See "Data change" for further contributors.
