New York-Vollstereo 4645 dunkel
Blaupunkt (Ideal), Berlin, später Hildesheim
- Country
- Germany
- Manufacturer / Brand
- Blaupunkt (Ideal), Berlin, später Hildesheim
- Year
- 1959/1960
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 22221
-
- alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
- Brand: Rotstern
Aus Blaupunkt-Prospekt 1959/60
Original prospekt.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 15
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 7 AM circuit(s) 12 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 110-240 Volt
- Loudspeaker
- 7 or more Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: New York-Vollstereo 4645 [dunkel] - Blaupunkt Ideal, Berlin,
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 1470 x 900 x 460 mm / 57.9 x 35.4 x 18.1 inch
- Notes

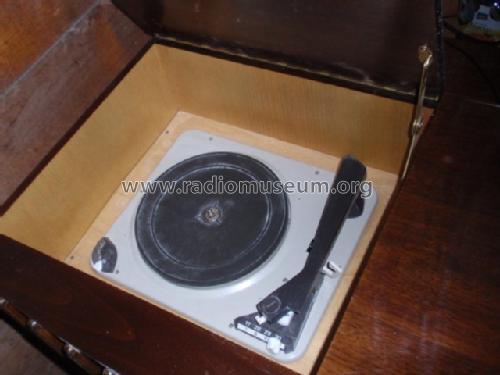

- dunkel hochglanzpoliert, 9 Lautsprecher: 4x180x260mm, 4x100mm, 1x Druckkammerlautsprecher. Plattenspieler Rex de Luxe Stereo.
- Net weight (2.2 lb = 1 kg)
- 81 kg / 178 lb 6.6 oz (178.414 lb)
- Price in first year of sale
- 1,475.00 DM
- External source of data
- Erb
- Source of data
- HdB d.Rdf-& Ferns-GrH 1959/60
