• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1928/1929

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 456

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• RE074 RE054 RE134

• Main principle
• TRF with regeneration; 2 AF stage(s)

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Direct Current supply (DC) / 220 Volt

• Loudspeaker
• Magnetic loudspeaker (reed) generic.

• Material
• Wooden case

• from Radiomuseum.org

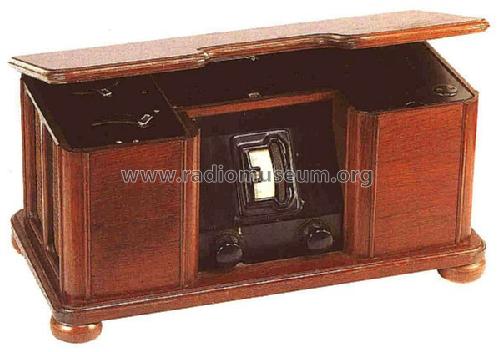

• Model: NR III - Blaupunkt Ideal, Berlin,

• Dimensions (WHD)
• 520 x 260 x 250 mm / 20.5 x 10.2 x 9.8 inch

• Notes
• Trommelskala; kap.Rückk. [514, 560]

• Net weight (2.2 lb = 1 kg)
• 9.6 kg / 21 lb 2.3 oz (21.145 lb)

• Price in first year of sale
• 330.00 RM +

• Source of data
• Radio-Diehr, Berlin, 1928/1929 / Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange + FS-Bestückungstabellen

• Mentioned in
• Katalog Prohaska 1928/29

• Picture reference
• Eine Abbildung findet sich im Doppelband "Radios von gestern"
