• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1981/1982

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 115714

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 8 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

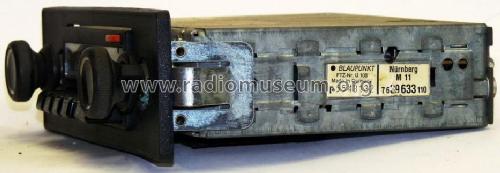

• Model: Nürnberg M11 7.639.633 - Blaupunkt Ideal, Berlin,

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 174 x 43 x 140 mm / 6.9 x 1.7 x 5.5 inch

• Notes
• L-M-M-U-U-U Stationstasten, ARI-Taste und LED, Klangregler, Spulenabstimmung.

• Net weight (2.2 lb = 1 kg)
• 1.1 kg / 2 lb 6.8 oz (2.423 lb)

• Price in first year of sale
• 180.00 DM

• Author
• Model page created by Willi Ribbe. See "Data change" for further contributors.
