• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1986–1988

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 152330

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

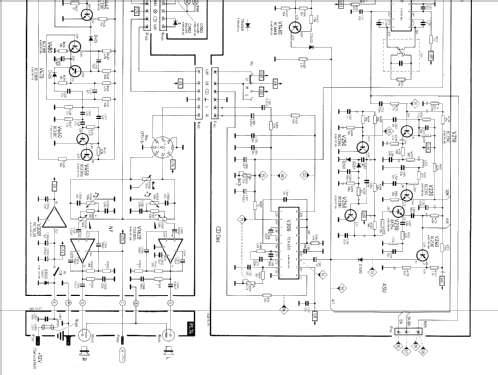

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 21 W (23 W max.)

• Material
• Metal case

• from Radiomuseum.org

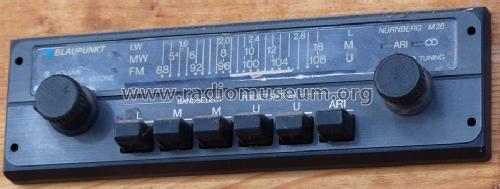

• Model: Nürnberg M26 7.644.553.010 - Blaupunkt Ideal, Berlin,

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 183 x 59 x 190 mm / 7.2 x 2.3 x 7.5 inch

• Notes
• LW / 2x MW / 2x UKW + ARI.

• Net weight (2.2 lb = 1 kg)
• 1.1 kg / 2 lb 6.8 oz (2.423 lb)

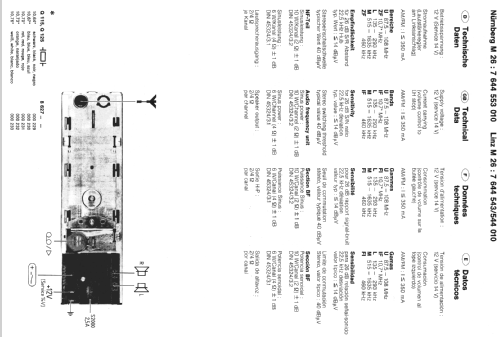

• Literature/Schematics (1)
• -- Original prospect or advert (Blaupunkt Prospekt 03/88)

• Author
• Model page created by Guido Höh. See "Data change" for further contributors.
