Omnibus-Anlage München 15 7.631.841 ab 1900001

• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1971

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 123831

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

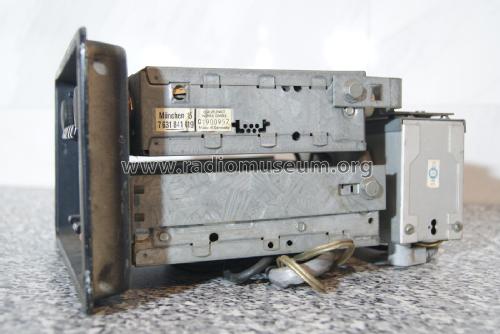

• Picture
• Schematics

Previous Next

Previous Next

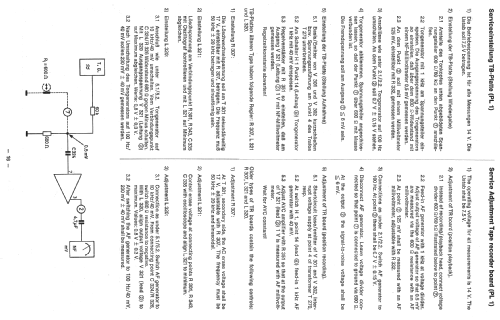

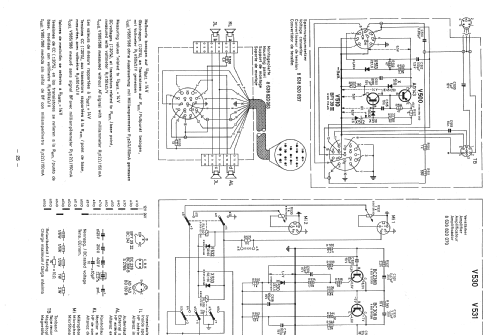

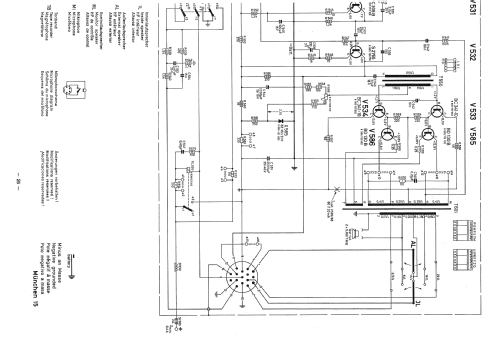

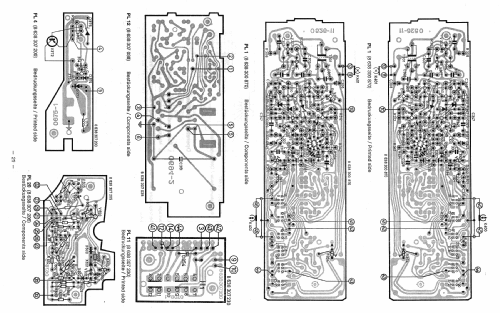

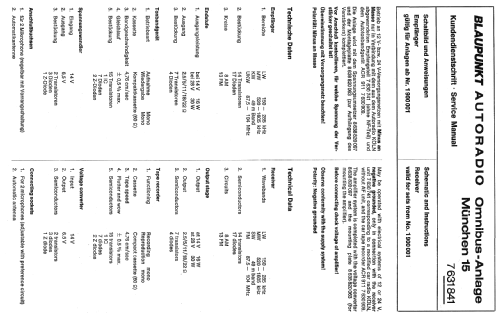

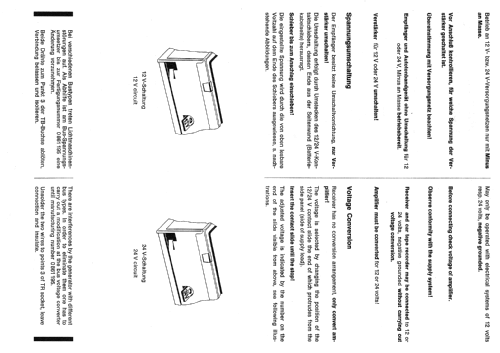

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 38

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 8 AM circuit(s)     13 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12; 24 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 16 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: Omnibus-Anlage München 15 7.631.841 [ab 1900001] - Blaupunkt Ideal, Berlin,

• Shape
• Chassis only or for «building in»

• Notes
• Ausgangsleistung bei 12 V = 16 Watt, bei 24 V = 30 Watt; Kassettentonbandgerät für Mono-Aufnahme und -Wiedergabe, Anschlussbuchsen für 2 Mikrofone.

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Richard Winter. See "Data change" for further contributors.
