• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1969/1970

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 132284

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

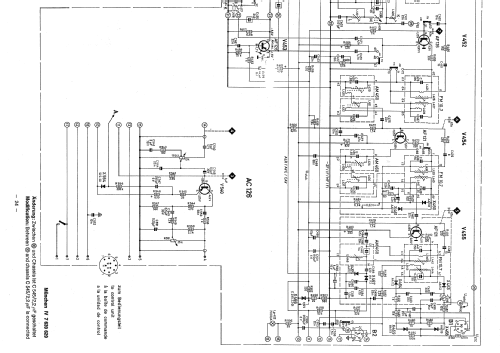

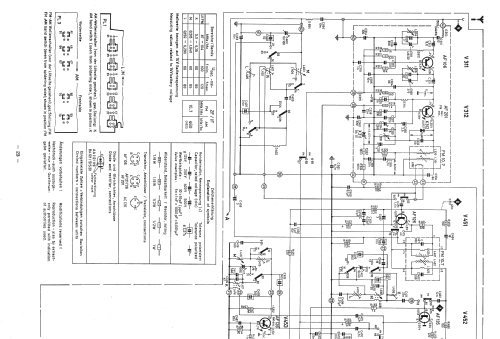

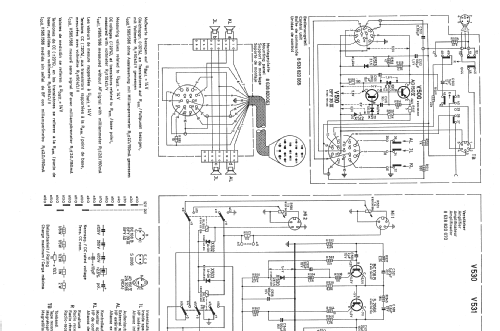

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 18

• Semiconductors
• AF106 AF201 AF126 AF121 AC126 AD150 BFY39 BC108 BFY40 2N3055

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12; 24 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org
• Model: Omnibus Anlage München IV 7.639.629 - Blaupunkt Ideal, Berlin,

• Shape
• Chassis only or for «building in»

• Notes
• Halbleiter teilweise mehrfach vorhanden.
  Omnibus-Übertragungsanlage München IV bestehd aus Empfängerteil Frankfurt ohne NF-Teil, mit Bedienungsteil und Leistungsverstärker.

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Richard Winter. See "Data change" for further contributors.
