Orbis 7.673.210
Blaupunkt (Ideal), Berlin, später Hildesheim
- Country
- Germany
- Manufacturer / Brand
- Blaupunkt (Ideal), Berlin, später Hildesheim
- Year
- 1973–1975
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 116843
-
- alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
- Brand: Rotstern

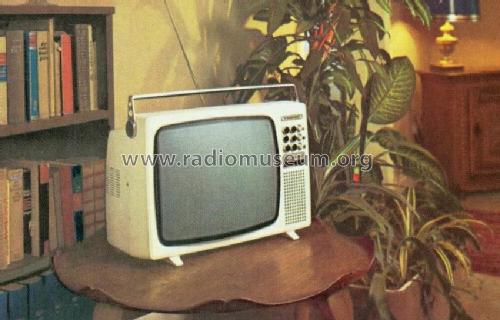

Original prospekt.
Original prospekt.
- Number of Tubes
- 1
- Valves / Tubes
- A44-120W
- Number of Transistors
- 24
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Orbis 7.673.210 - Blaupunkt Ideal, Berlin,
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 515 x 360 x 322 mm / 20.3 x 14.2 x 12.7 inch
- Notes
- 3 ICs. VHF/UHF-Allbereichtuner.
- Net weight (2.2 lb = 1 kg)
- 12 kg / 26 lb 6.9 oz (26.432 lb)
- Source of data
- Handbuch VDRG 1973/1974
- Author
- Model page created by Bernd P. Kieck. See "Data change" for further contributors.
